Rheem 70-23641-81 A241 Fasco Furnace Draft Inducer Blower REPLACEMENT 7021-9567

Product Description

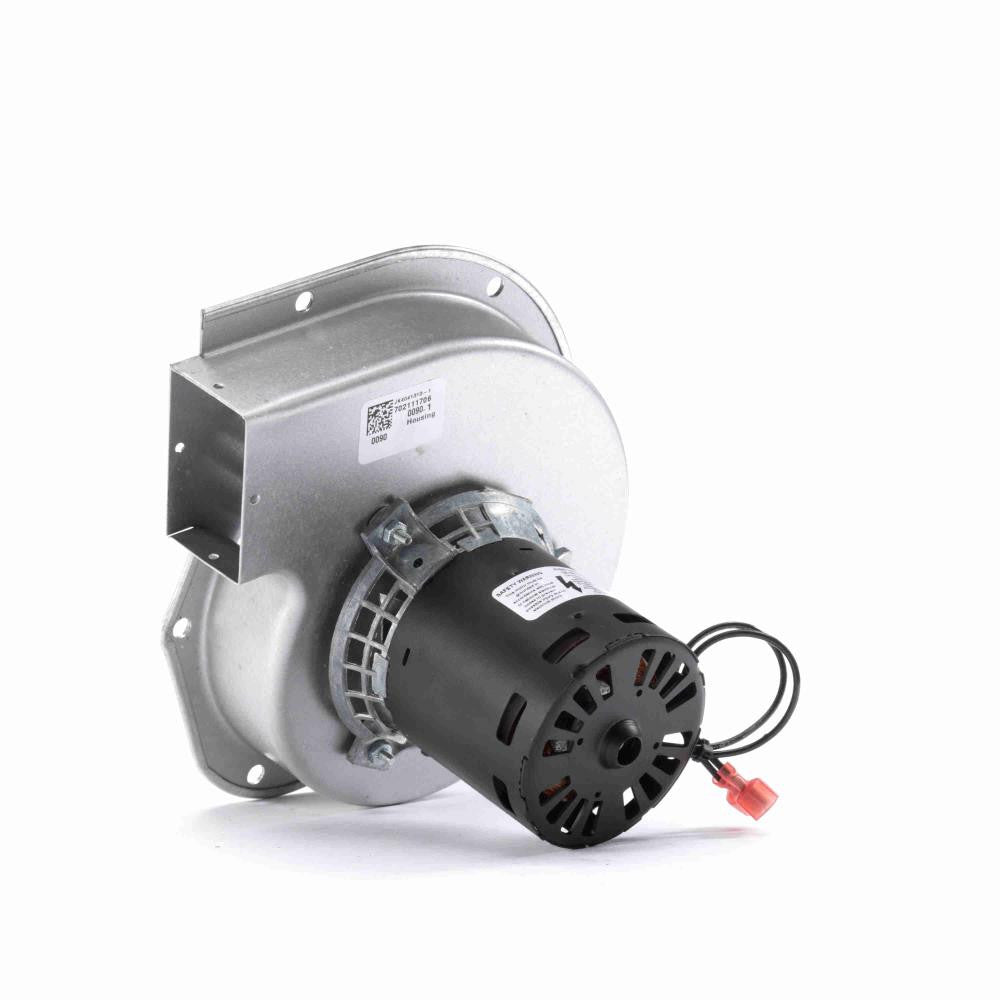

The RHEEM 70-23641-81 A241 Fasco Furnace Draft Inducer Blower is designed for furnace applications. It operates at 208/230 Volts and 0.62 Amps, with a speed of 3200 RPM. The blower features clockwise (CW) rotation and includes a gasket for installation.

• Operates at 208/230 Volts and 0.62 Amps
• Features clockwise (CW) rotation
• Includes a gasket for installation

Product Highlights

This furnace draft inducer blower is designed for efficient and reliable performance in heating systems, ensuring proper ventilation and combustion.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 70-23641-81

Technical Specifications

• Input Voltage: 208/230
• Input Current: 0.62 Amps
• Speed: 3200 Rpm
• Rotation: CW
• Diameter: 3.3"
• Pole: Shaded Pole
• Protection: Thermally Protected
• Air Over: Open Air Over
• Insulation Class: Class B Insulation, 40°C Ambient
• Bearing Type: Ball Bearing
• Leads: 6" Leads with Spade Terminals
• Includes: Gasket
