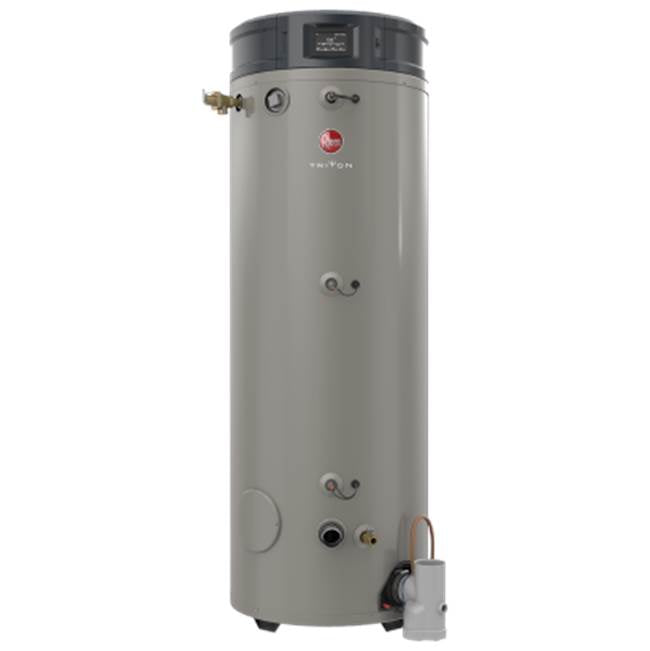

Rheem 685878 Water Triton Super Duty SU

Product Description

The Rheem 685878 Water Triton Super Duty SU features an all-inclusive leak detection and prevention system. Designed for commercial applications, this water heater has a 100-gallon capacity and a heating capacity of 130000 Btu/hr. It operates at 110V with a current rating of 7.5 A and a frequency of 50/60 Hz. The system is certified for altitudes up to 8999' above sea level.

• Features LeakSense, an intelligent leak detection system that detects leaks as small as a grain of sand.
• Equipped with EcoNet smart monitoring technology with integrated Wi-Fi for performance updates and alerts.
• Includes a built-in condensate neutralizer to reduce water acidity for safe drainage.

Product Highlights

The Rheem Water Triton Super Duty SU is designed for commercial use, offering advanced features like leak detection and smart monitoring for efficient and reliable water heating.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 685878

Technical Specifications

• Finish: Porcelain Enamel
• Collection: Triton
• UPC: 020352685878
• Online Product ID: 5604185
• Height: 77"
• Diameter: 26.38"
• Oversized: Yes
• ENERGY STAR: Yes
• Material: Steel
• Input Voltage: 110v
• Capacity (gal.): 100
• Fuel Type: Liquid Propane Gas
• Application: Commercial
• Cold Water Inlet Size: 2''
• Current Rating: 7.5 A
• Frequency Rating: 50/60 Hz
• Heating Capacity: 130000 Btu/hr
• Height To Cold Side Connection: 13''
• Height To Gas Connection: 77.5''
• Height To Hot Side Connection: 69.8''
• Height To Vent Connection: 10.63''
• Hot Water Outlet Size: 1.5''
• Maximum Working Pressure: 150 psi
• Recovery Rate At 100 Deg F: 153 gph
• Safetylist: AHRI Certified, CSA Certified, NSF Certified, LHW Certified, UL Listed
• Vent Size: 2'',3'',4''
• Vent Type: Power Direct Vent,Power Vent
