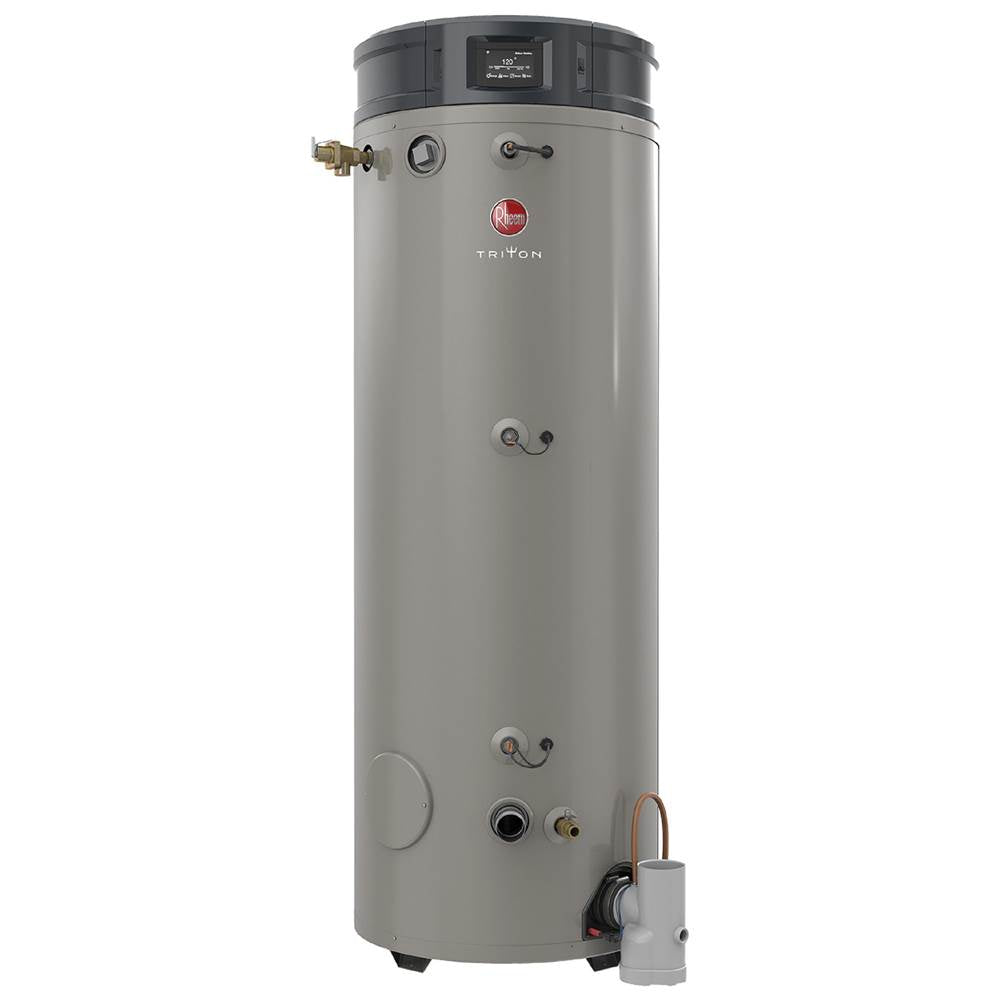

Rheem 685502 Water Commercial Triton Heavy Duty High Efficiency 80 Gal. 160K BTU ULN Natural Gas Power Direct Vent Tank Water Heater

Product Description

The Rheem 685502 is a high-efficiency commercial natural gas water heater from the Triton series, ideal for replacements and new construction. It features a triple pass heat exchanger constructed with ASME-grade steel and advanced power anodes for extended tank life. The unit has a BTU input of 160000 and a first-hour delivery of 242 gallons.

• Equipped with LeakSense, an intelligent leak detection system.
• Features systematic health checks for vital components.
• Includes a built-in condensate neutralizer to reduce water acidity.

Product Highlights

This 80-gallon Rheem Triton water heater maximizes energy savings with full modulation and scheduling capabilities, meeting 14 ng/J NOx requirements.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 685502
• Country of Origin: Mexico, USA

Technical Specifications

• Product Type: Natural Gas Water Heater

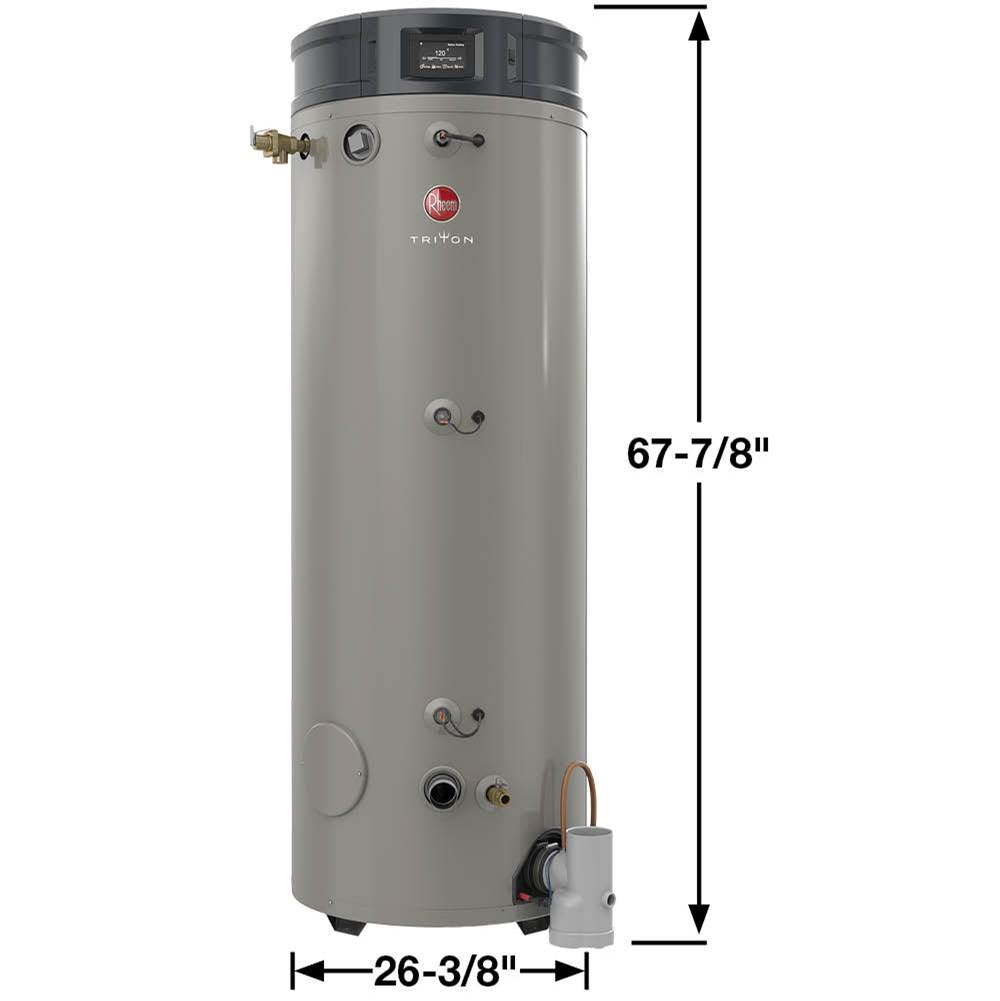

• Length: 39.75"
• Width: 26.25"
• Height: 69.63"
• Diameter: 26.38"
• Depth: 26.38"
• Finish: Porcelain Enamel
• Capacity (gal.): 80
• Fuel Type: Natural Gas
• Applications: Commercial
• Btu Input: 160000
• Certifications Listings: UL Listed
• First Hour Delivery: 242 gal
• Gas Connection Size: 1/2 in
• Indoor Outdoor: Indoor
• Smart Home: Yes
• Water Connection Size: 1-1/2 in Top, 2 in Side
• Water Heater Profile: Tall
• Oversized: Yes
• ENERGY STAR: Yes
• Material: Steel
