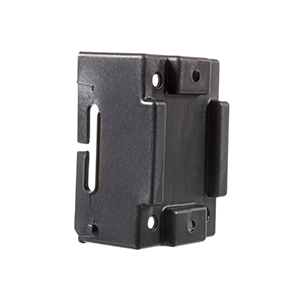

Rheem 68-105379-01 Furnace Coil Control Box

Product Description

The RHEEM 68-105379-01 is a replacement control box designed for use with specific Rheem furnace coil assemblies. The control box houses the low-voltage control circuitry that manages system operation within the coil cabinet. It is a direct OEM-style replacement part installed by licensed HVAC technicians during service or equipment repair. The enclosure measures 4.0 inches in length, 2.5 inches in width, and 2.0 inches in height, and weighs 1.0 pound, making it a compact component suited for the tight clearances typical of furnace coil cabinets.

This control box is used in residential HVAC installations where the Rheem RCF-2417SEAMCA or RCF-2417SEAVUA furnace coil is installed. It is typically found in split-system configurations where the indoor coil cabinet is mounted above or below the furnace air handler. HVAC technicians performing controls replacement or board-level service on these specific coil units will find this part to be the correct factory replacement.

Key Features

• Direct replacement control box for RCF-2417SEAMCA and RCF-2417SEAVUA furnace coil units
• Compact form factor: 4.0 x 2.5 x 2.0 inches for installation in tight coil cabinet spaces
• Lightweight at 1.0 pound for easy handling during service
• OEM part number 68-105379-01 ensures correct fitment without modification

Compatibility

Confirmed compatible with Rheem furnace coil models RCF-2417SEAMCA and RCF-2417SEAVUA. Verify the model number on the coil cabinet data plate before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect all power to the system at the breaker and verify voltage is absent before removing the existing control box or handling any wiring connections. Follow all applicable local electrical codes and manufacturer wiring diagrams when reconnecting the control harness. Do not restore power until all covers and panels are secured.

Technical Specifications

• Type: Control Box
• Length: 4.0 inches
• Width: 2.5 inches
• Height: 2.0 inches
• Weight: 1.0 pound

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 68-105379-01
