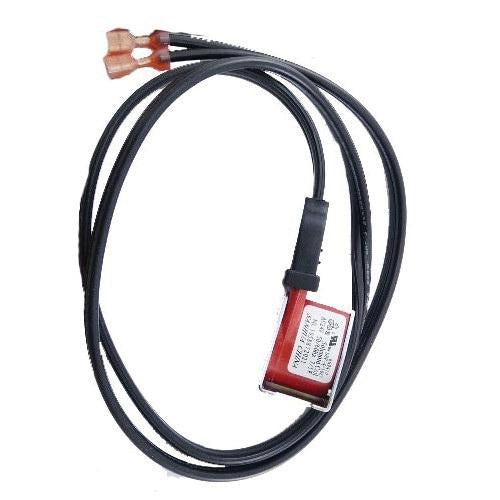

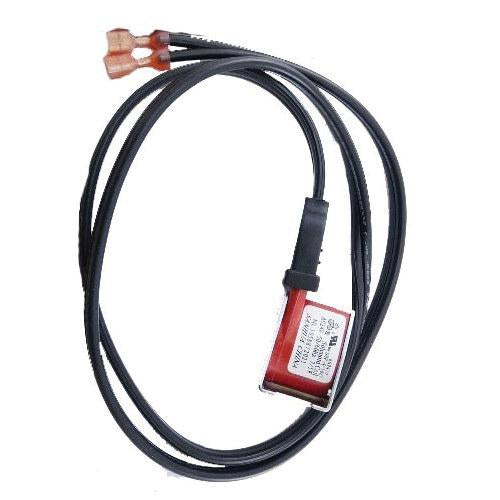

Rheem 669470R Reversing Valve Coil 7 W (42 in lead wires)

Product Description

Rheem 669470R reversing valve coil is a 24 V coil for residential split system heat pumps. It operates at 18–32 VAC (50/60 Hz) and consumes 7 W. The single-phase plastic coil includes 42-inch lead wires and is specified for use with PSH4BF-KA series heat pumps. Typical use includes replacement reversing valve coils in residential HVAC heat pump systems.

• 24 V nominal coil voltage; operating range 18–32 VAC at 50/60 Hz; 7 W power consumption (estimated current ~0.29 A at 24 V)
• Single-phase plastic construction with 42-inch lead wires
• Compatible with PSH4BF-KA series residential split system heat pumps

Product Highlights

Reversing valve coil, 24 V nominal, 18–32 VAC operating range, 7 W, 42 in lead wires

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 669470R

Technical Specifications

• Brand: Rheem
• MPN: 669470R
• Product Type: Reversing valve coil
• Input Voltage: 18-32 VAC (50/60 Hz)
• Coil Voltage: 24 V nominal
• Power Consumption: 7 W
• Estimated Operating Current: 0.29 A (approx.)
• Phase: Single-phase
• Material: Plastic
• Lead Wire Length: 42 in
• Compatible Models: PSH4BF-KA series residential split system heat pumps
