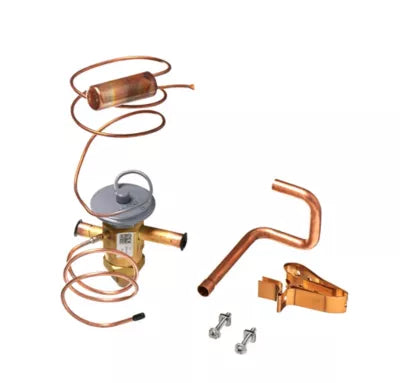

Rheem 611064a Txv Expansion Valve Kit Check Valve R22

Product Description

The RHEEM 611064a is a thermostatic expansion valve (TXV) kit that includes a check valve, designed for use in refrigerant systems operating on R22. The TXV meters refrigerant flow into the evaporator coil based on superheat, maintaining proper system efficiency and protecting the compressor from liquid slugging. This kit is a direct service replacement intended for installation by licensed HVAC technicians performing coil or refrigerant circuit service on compatible systems.

This expansion valve kit is suited for residential and light commercial HVAC applications where R22 refrigerant is the system charge. It is typically installed at the indoor coil or metering device location during refrigerant circuit service, coil replacement, or TXV failure diagnosis. The included check valve supports bi-directional system configurations common in heat pump applications.

Key Features

• Complete kit includes TXV and check valve for a single-source replacement
• Calibrated for R22 refrigerant systems
• Check valve supports heat pump bi-flow operation
• OEM-matched replacement designed to restore proper refrigerant metering and system efficiency
• Sold as individual kit (each)

Compatibility

Designed as an OEM-style replacement TXV kit for RHEEM residential refrigerant systems utilizing R22 refrigerant. Refer to the equipment nameplate and service literature to confirm fitment before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Recover all system refrigerant and relieve system pressure before removing the existing metering device. Follow applicable local mechanical codes and the equipment manufacturer's service instructions for brazing, leak testing, and refrigerant recharge procedures. Do not operate the system without verifying proper superheat after installation.

Technical Specifications

• Refrigerant Type: R22
• Kit Contents: TXV and check valve
• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 611064a
