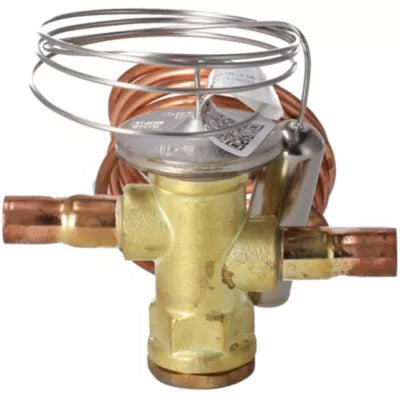

Rheem 61-110124-03 Thermostatic Expansion Valve Txv

Product Description

The RHEEM 61-110124-03 is a thermostatic expansion valve (TXV) designed for use in refrigerant-based cooling systems. The TXV meters refrigerant flow into the evaporator coil, maintaining the correct superheat level to maximize system efficiency and protect the compressor from liquid slugging. This component is a precision mechanical valve that responds to evaporator outlet temperature and pressure conditions. It is installed by licensed HVAC technicians as part of split-system or packaged air conditioning and heat pump service, typically during refrigerant-side repairs or system upgrades requiring an expansion device replacement.

This TXV is suited for residential and light commercial HVAC applications where a thermostatic expansion device is specified. It fits into the liquid line circuit at the evaporator inlet and is used in systems requiring accurate refrigerant metering to maintain proper evaporator performance. Technicians installing this valve should verify that the refrigerant type and system capacity requirements are compatible with the valve before installation, using specifications from the equipment manufacturer documentation.

Key Features

• Thermostatic expansion valve provides precise refrigerant metering to the evaporator coil
• Maintains proper superheat levels to protect compressor integrity
• OEM part number 61-110124-03 ensures direct fitment in applicable RHEEM systems
• Sold as individual unit for single-system service

Compatibility

Designed as an OEM-style replacement TXV for compatible RHEEM refrigerant-based cooling and heat pump systems. Verify equipment model and refrigerant type against RHEEM service documentation before installation.

Installation Notes

TXV replacement should be performed by an EPA 608-certified HVAC technician. Recover all refrigerant from the system before opening any refrigerant-side connections, following EPA regulations. Ensure the sensing bulb is properly clamped to the suction line in the manufacturer-specified position to achieve accurate superheat control. Leak-test all connections and verify superheat settings after recharging the system.

Technical Specifications

• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 61-110124-03
