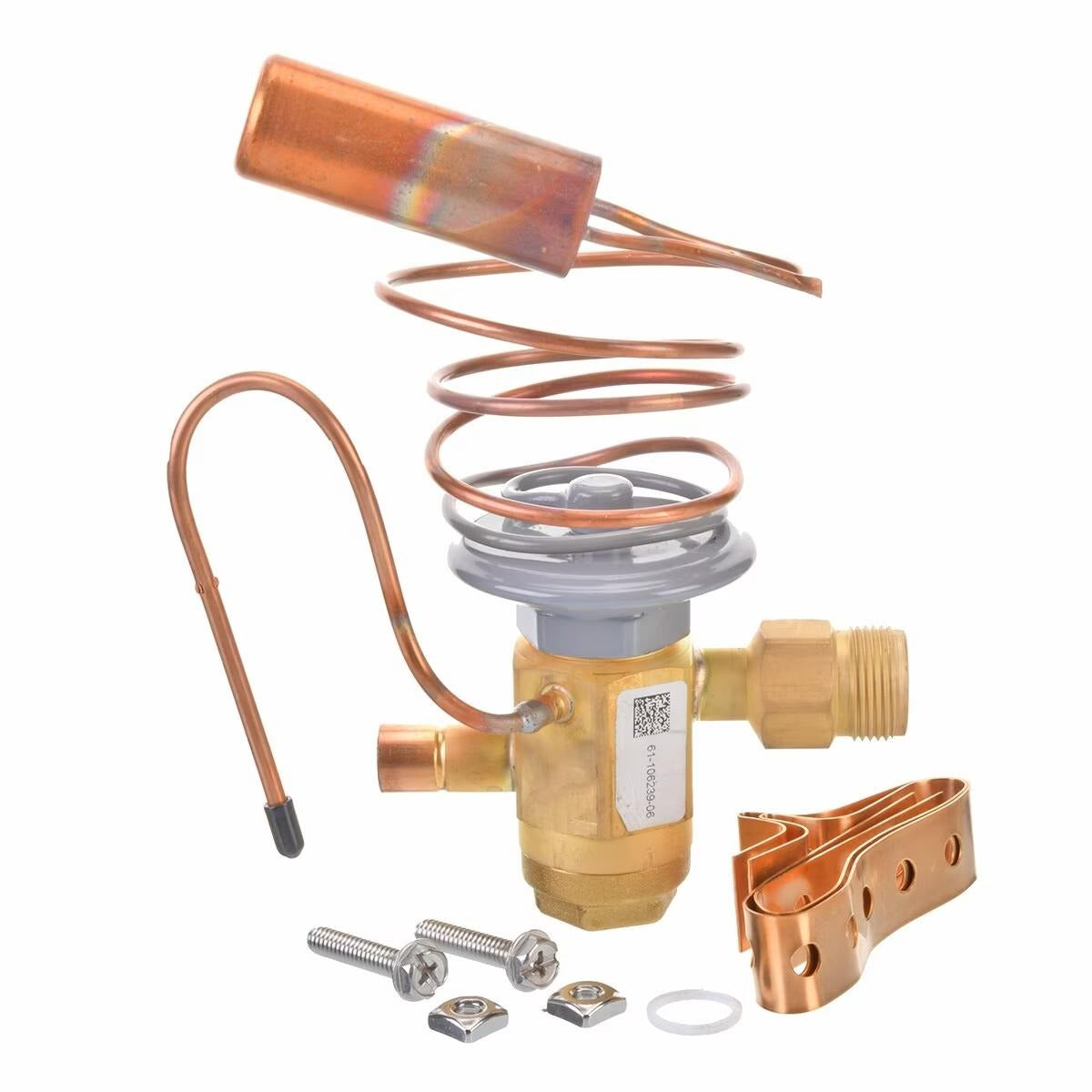

Rheem 61-106239-06 Expansion Valve (Txv) 2 Ton (Straight/Angle) Replaces 61-26018-04

Product Description

Rheem 61-106239-06 is a thermostatic expansion valve (Txv) for Rheem HVAC systems that regulates refrigerant flow into the evaporator based on temperature sensing. The CBBIVE Series 2 valve uses a balanced port design with an integrated internal check valve and mesh insert strainer, supports straight-through or angle configurations, and is specified for R-22 service with a nominal capacity reference of 2 tons. Element cap tube is 29 in; equalizer tube is 7 in.

• Balanced port CBBIVE Series 2 design with integrated internal check valve and mesh insert strainer
• Supports straight-through or angle configurations; inlet fitting type Chatleff and 3/8 in sweat outlet
• Element cap tube 29 in, equalizer tube 7 in with 1/8 in external equalizer connection; intended for R-22 systems and 2 ton nominal capacity

Product Highlights

CBBIVE Series 2 balanced-port Txv; internal check valve; mesh strainer; replaces 61-26018-04; replacement power head KT-43-VGA; nominal capacity 2 tons

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 61-106239-06
• Country of Origin: United States
