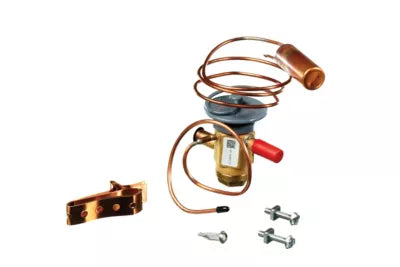

Rheem 61-103652-27 Txv Expansion Valve

Product Description

The RHEEM 61-103652-27 is a thermostatic expansion valve (TXV) designed as a direct replacement component for select Rheem fan coil units. The TXV meters refrigerant flow into the evaporator coil, regulating superheat to maintain efficient system operation. Precise refrigerant metering is critical to system efficiency and equipment longevity, making an OEM-matched replacement valve the correct choice when servicing these units. This part is sold individually and is intended for installation by a licensed HVAC technician.

This TXV is specified for use with Rheem fan coil units in residential cooling and heat pump applications. Compatible models include RCFL-AU2514CC, RCFL-HM2514CC, RCFL-HU2514CU, and RCFL-HU2514TU. Typical installation occurs during refrigerant-side servicing when the existing valve has failed, is hunting, or cannot maintain proper superheat under normal operating conditions.

Key Features

• OEM replacement TXV matched to specific Rheem fan coil unit models
• Regulates refrigerant flow and controls evaporator superheat
• Direct-fit replacement reduces diagnostic uncertainty and rework
• Sold as a single unit for targeted component-level repair

Compatibility

Designed for use with the following Rheem fan coil models: RCFL-AU2514CC, RCFL-HM2514CC, RCFL-HU2514CU, and RCFL-HU2514TU. Confirm model number from the unit nameplate before ordering.

Installation Notes

TXV replacement must be performed by a licensed HVAC technician with EPA Section 608 certification, as the work involves recovering and recharging refrigerant. Always recover the system refrigerant charge and relieve system pressure before opening any refrigerant circuit. Follow the equipment manufacturer service documentation and applicable mechanical codes when brazing or flaring connections. After installation, leak-check all joints and verify proper superheat before returning the system to service.

Technical Specifications

• Part Type: Thermostatic Expansion Valve (TXV)
• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 61-103652-27
