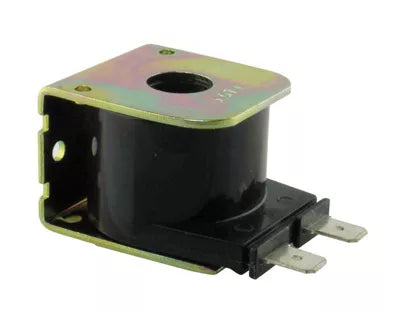

Rheem 61-101713-02 Reversing Valve Coil 24V

Product Description

The RHEEM 61-101713-02 is a 24-volt reversing valve coil designed for use in heat pump systems. The reversing valve coil is the electromagnetic solenoid component that shifts the reversing valve between heating and cooling modes by energizing or de-energizing at the command of the system control board. This part is sold as a single unit and is a direct service replacement for the original coil assembly. Licensed HVAC technicians handling heat pump service and refrigerant-circuit work are the typical installers of this component.

This coil is suited for residential heat pump applications where the reversing valve solenoid has failed or become intermittently unreliable. A faulty reversing valve coil commonly presents as a system stuck in heating or cooling mode, or one that fails to switch modes on demand. Replacing the coil alone, rather than the full reversing valve body, is the standard first-step repair when the valve body itself is confirmed functional.

Key Features

• 24-volt operating voltage matches standard low-voltage heat pump control circuits
• Solenoid coil-only replacement avoids full reversing valve body changeout
• Sold as a single unit for straightforward one-for-one replacement
• OEM-style replacement maintains original system control logic and switching response

Compatibility

Designed as an OEM-style replacement reversing valve coil for RHEEM heat pump systems requiring a 24-volt solenoid coil. Confirm valve body coil connection type and voltage rating before ordering.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with heat pump refrigerant circuits and low-voltage control wiring. De-energize the system at both the disconnect and the breaker panel before removing the existing coil. The coil typically slides onto the valve stem and is secured without disturbing the refrigerant circuit, but always verify system pressure is stable and the circuit is fully de-energized before proceeding. Work should comply with applicable mechanical and electrical codes.

Technical Specifications

• Voltage: 24 volts
• Component Type: Reversing Valve Coil
• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 61-101713-02
