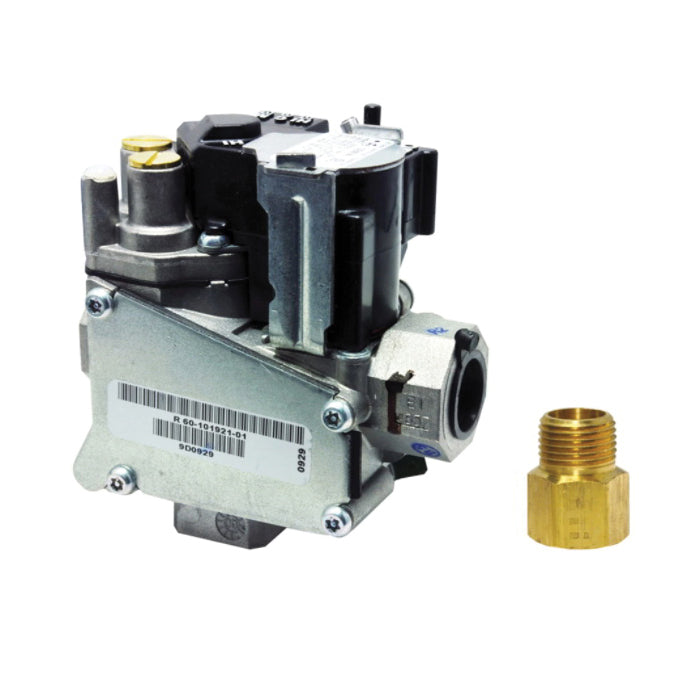

Rheem 60-24180-81 (36G23-202E91) 36G Series Combination Natural Gas Control Valve

Product Description

The Rheem 36G Series Combination Natural Gas Control Valve, MPN 60-24180-81 (36G23-202E91), is designed for efficient gas flow control in HVAC systems. This control valve operates at a capacity of 140,000 BTU/hr, making it suitable for various gas applications.

• Designed for non-piloted intermittent ignition systems
• Includes features for quiet operation
• Built-in pressure tap for accurate readings

Product Highlights

This control valve is ideal for high-efficiency gas systems, meeting stringent performance standards.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: 058665

Technical Specifications

• Natural Gas Spring Kit: 60-21193-02
• LP Spring Kit: 60-21193-01
• Valve Body Height: 4-1/4 inches
• Valve Series: 36G
• Type of Opening: Slow
• Fuel Type: Natural Gas
• Capacity: 140,000 BTU/hr @ 1 in WC Pressure Drop
• Ignition System: Hot Surface/Direct Spark
• Input Fitting Size: 1/2 inches NPT
• No of Stages: 1
• Output Fitting Size: 1/2 inches NPT
• Valve Body Length: 4 inches
• Valve Body Width: 2-7/16 inches
• UPC: 662766388688
