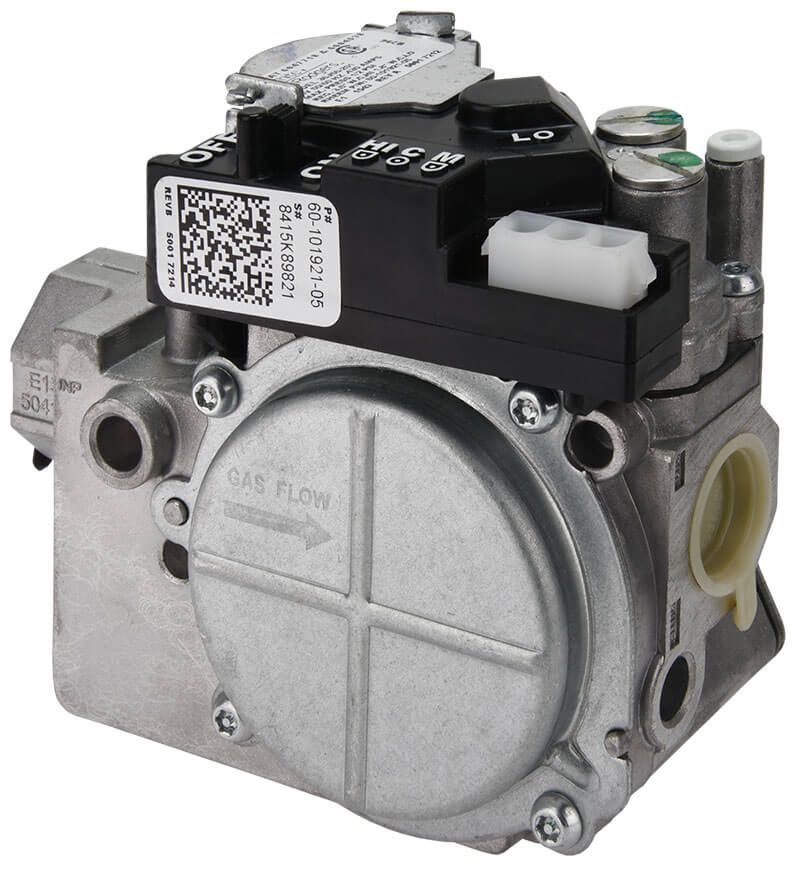

RHEEM 60-101921-05 (36J56-201B2) 36J Series Combination Natural Gas Valve

Product Description

The RHEEM 60-101921-05 (36J56-201B2) is a combination gas valve designed for natural gas applications. It features a slow open, two-stage operation and offers reliable performance with a maximum capacity of 140,000 BTU per hour. This valve is specifically designed for use in common ignition systems such as hot surface ignition (HSI) and direct spark ignition (DSI).

• Dual functionality with adjustable regulators.
• Electric on/off switch for easy operation.
• Pressure taps for monitoring system performance.

Product Highlights

This gas valve is CSA approved, ensuring compliance with safety standards. Its design facilitates convenient installation and compatibility with various heating systems. The integrated inlet and outlet screens help maintain optimal performance by preventing debris from entering the system.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer: RHEEM

Technical Specifications

• Model: 60-101921-05 (36J56-201B2)
• Height: 4-1/4 inches
• Length: 4-3/4 inches
• BTU Capacity: 140,000 BTU/hr
• Min Order Qty: 1
