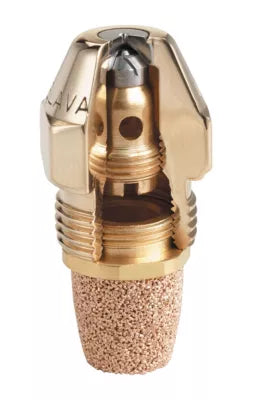

Rheem 595032a Oil Nozzle Solid Spray 0.75B 70 Degrees

Product Description

The RHEEM 595032a is a solid-cone Type B oil burner nozzle rated at 0.75 GPH with a 70-degree spray angle. It is designed to atomize fuel oil into a fine, uniform pattern that supports reliable ignition and efficient combustion in oil-fired heating equipment. The solid cone spray distributes fuel fairly evenly throughout the complete spray pattern, making it well suited for larger burner applications where consistent flame shape is critical. Licensed oil burner technicians install this nozzle as part of routine annual service or combustion tune-up procedures.

This nozzle is used in residential and light commercial oil-fired furnaces, boilers, and water heaters equipped with pressure-atomizing gun-type burners. The 70-degree spray angle suits a wide range of combustion head configurations. The solid cone Type B pattern is particularly effective in larger burner chambers where a fuller, more uniform fuel distribution across the entire pattern improves combustion efficiency. Note that at higher flow rates, the spray pattern becomes progressively more hollow, which is a known characteristic of this nozzle type.

Key Features

• Solid cone Type B spray pattern distributes fuel uniformly throughout the complete spray cone
• 0.75 GPH flow rate at standard operating pressure
• 70-degree spray angle suits a wide range of combustion head geometries
• Promotes smooth ignition and efficient combustion, especially in larger burner applications
• Blue vial identification for quick visual confirmation during service

Compatibility

Designed as an OEM-style replacement nozzle for oil-fired furnaces, boilers, and water heaters using pressure-atomizing gun-type burners requiring a 0.75 GPH Type B solid cone nozzle at a 70-degree spray angle.

Installation Notes

Installation should be performed by a licensed oil burner technician. Shut down the burner and allow all components to cool before replacing the nozzle. Use a proper nozzle wrench to avoid damaging the nozzle body or adapter; do not overtighten. After installation, verify combustion performance with a flue gas analyzer to confirm proper air-to-fuel ratio and CO levels before returning the system to service.

Technical Specifications

• Flow Rate: 0.75 GPH
• Spray Angle: 70 degrees
• Spray Pattern: Solid Cone Type B
• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 595032a
