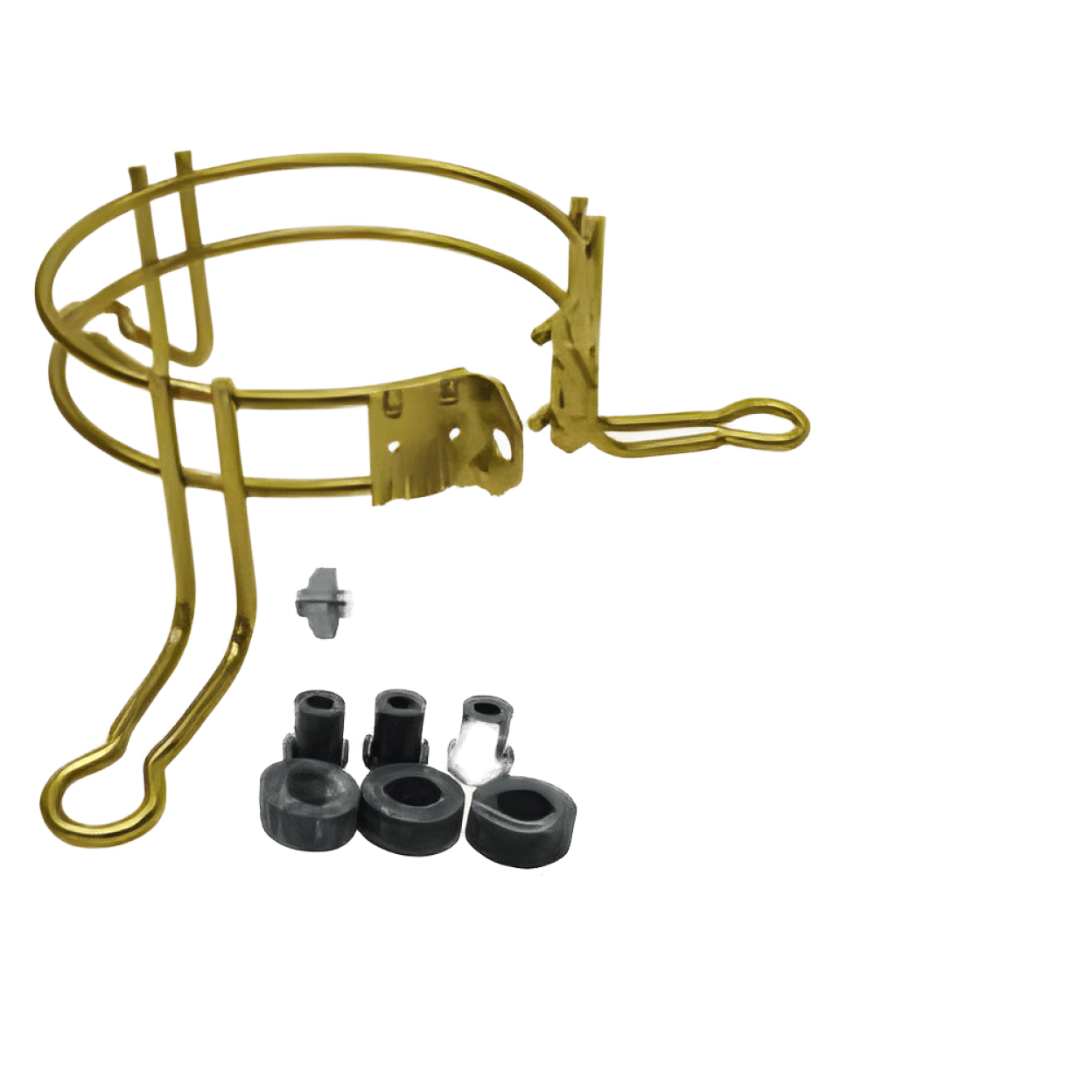

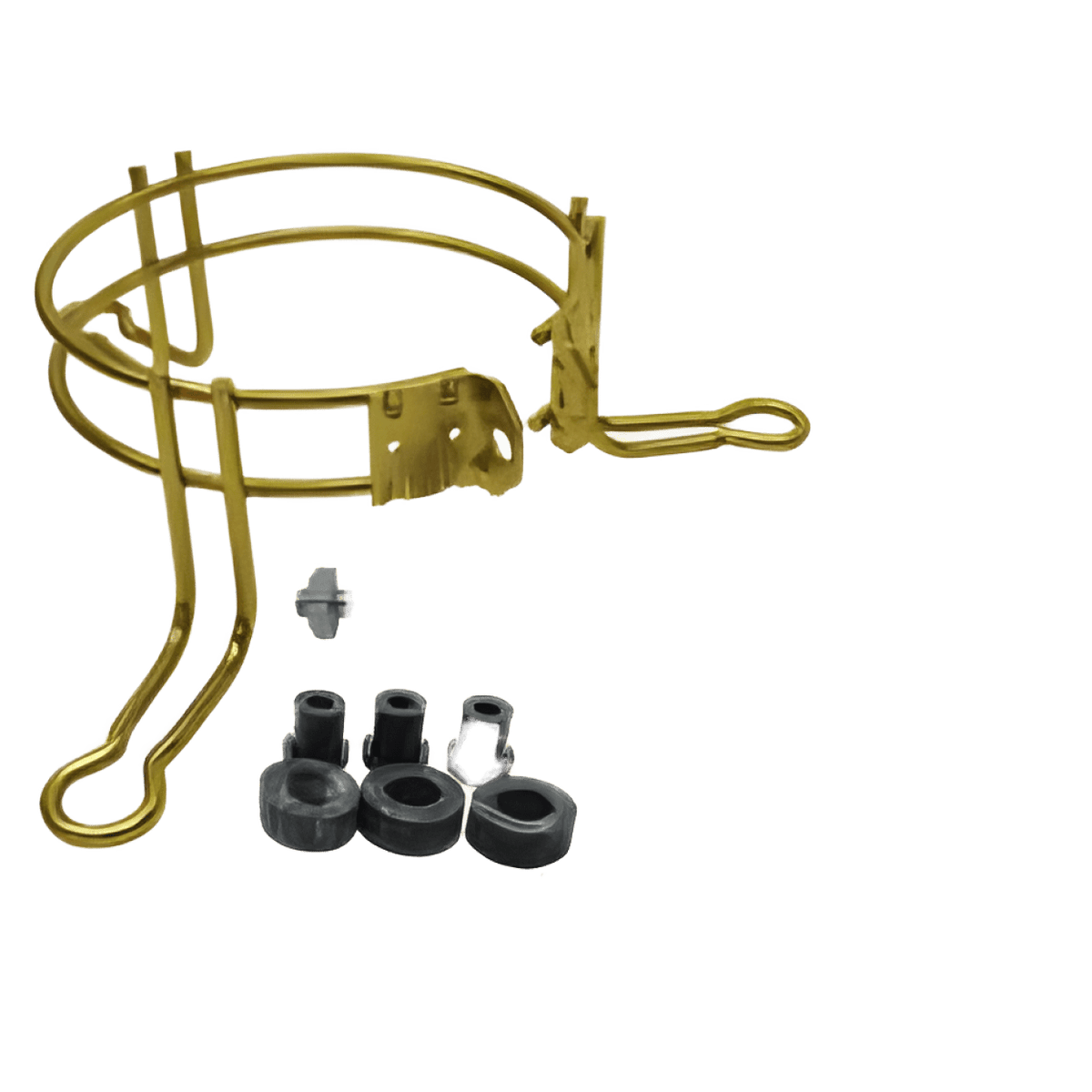

Rheem 56-2300-109 Blower Motor Belly Band Mounting Kit, Wire Type, With Three Arms

Product Description

The Rheem Blower Motor Belly Band Mounting Kit, MPN 56-23001-09, is designed for securing blower motors in HVAC applications. This mounting kit consists of a wire type with three arms, ensuring a solid fit for various motor configurations.

• Attachment arm overall length is three and five-sixteenths inches.
• Features a radial arm distance of two and three-sixteenths inches.
• Compatible with a ten-inch bolt circle diameter.

Product Highlights

Secure installation and support for blower motors enhance overall performance in heating and cooling systems.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: 56-23001-09

Technical Specifications

• Attachment Arm Overall Length: 3-5/16 inches
• Motor Frame Size: 48
• Radial Arm Distance: 2-3/16 inches
• Blower Mounting Bolt Circle Diameter: 10 inches
• Nominal Motor Diameter: 5-5/8 inches
• Number of Arms: 3
• UPC: 662766081626
