RHEEM 55-23148-34S AC Compressor - 4 Ton

Product Description

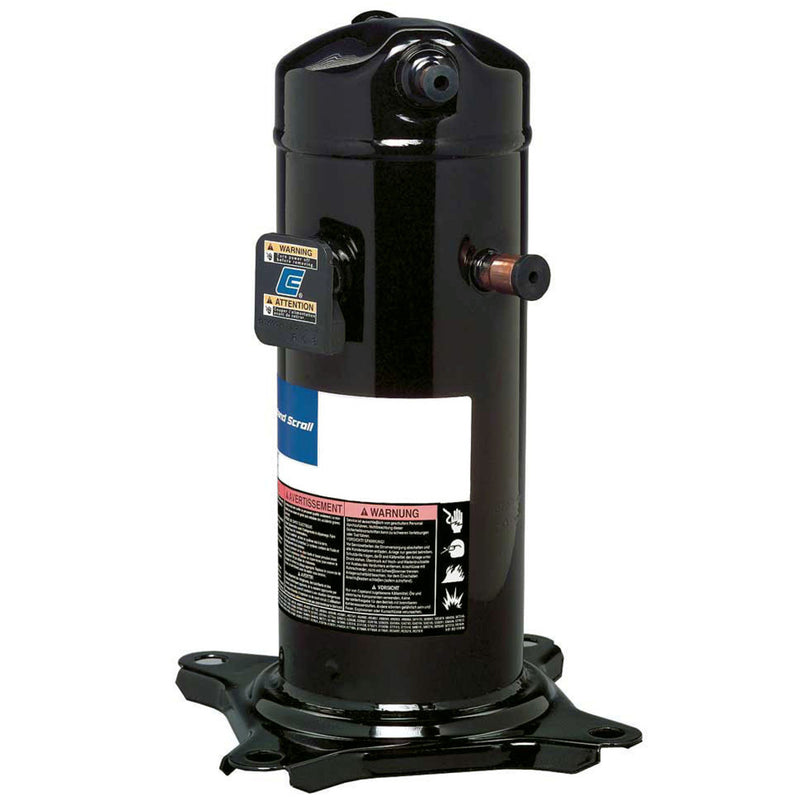

The RHEEM 55-23148-34S is a four-ton AC compressor designed for air conditioning systems. This device serves as a direct factory replacement Copeland scroll compressor. It effectively compresses refrigerant from gas to liquid and pumps it through refrigerant lines. This compressor is rated at 48,200 BTU and operates with single-phase power systems.

• Capacity: 48,200 BTU/HR
• Refrigerant Type: R-22
• Compressor Type: Scroll

Product Highlights

This compressor ensures effective cooling for residential and commercial applications. It is built for efficiency, offering a reliable performance in various HVAC systems.

Product Information

Standard Information

• Brand: RHEEM
• MPN: 55-23148-34S

Technical Specifications

• Capacity (BTU/HR): 48200
• Compressor Type: Scroll
• Refrigerant: R-22
• Input Voltage: 208/230V
• Number of Phases: 1
• Frequency: 50/60 Hz
• Run Capacitor: 60/440 uF/V
• Start Relay Part Number: 42-25105-01
• Start Capacitor: 88-106/330 uF/V
• Start Capacitor Part Number: 43-17075-04
• Rated Load Current: 24.3 A
• Maximum Continuous Current: 34.0 A
• Locked Rotor Current: 137.0 A
• Crankcase Heater Included: No
• Suction Line Location: 2
• Suction Line Height: 11-1/8 in.
• Suction Line Configuration: Stub Out
• Suction Line Size: 7/8 in.
• Discharge Line Location: 3
• Discharge Line Height: 15-3/8 in.
• Discharge Line Configuration: Stub Out
• Discharge Line Size: 1/2 in.
• Overall Compressor Height: 16-7/16 in.
• Mounting Base Dimensions: 7-1/2 x 7-1/2 in.
