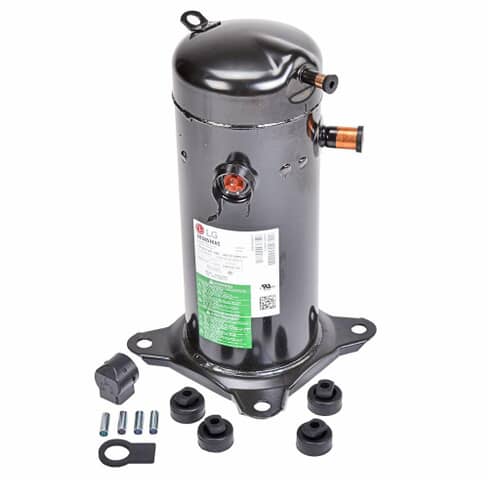

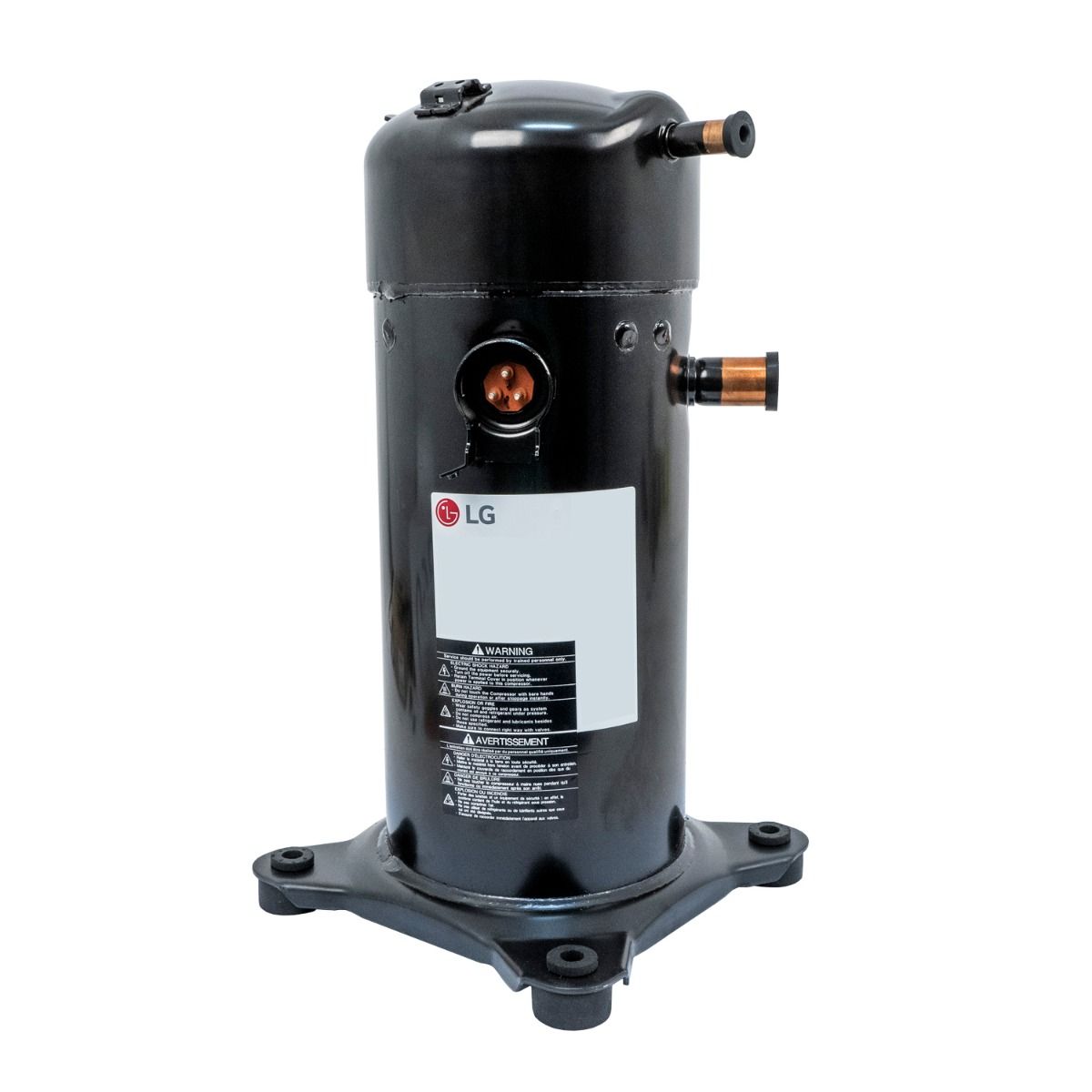

RHEEM 55-107225-04 Rheem Scroll Compressor 55-107225-04

Product Description

The Rheem 55-107225-04 is a reliable scroll compressor suitable for single-stage air conditioning systems, specifically designed for the RA1460CC1NB model. It operates efficiently at a voltage of 220-230VAC and a frequency of 60 Hz with a three-phase configuration. This compressor uses R-410A refrigerant and Polyolester (POE) oil.

• Nominal capacity of 51000 BTUH.
• Operates with R-410A refrigerant.
• Designed for single-stage air conditioning systems.

Product Highlights

This compressor is built to provide effective cooling while ensuring compatibility with modern refrigerants. It is essential for maintaining optimal performance in HVAC applications.

Product Information

Standard Information

• Manufacturer Part Number: 55-107225-04
• Item Name: Scroll Compressor

Technical Specifications

• Nominal Capacity: 51000 BTUH
• Input Voltage: 220 - 230VAC
• Frequency Rating: 60 Hz
• Phase: 3
• Rated Load Amperage: 11.6A
• Refrigerant Type: R-410A
• Dimensions: 16-3/4 inch H
• Discharge Line Size: 1/2 inch
• Suction Line Size: 7/8 inch
• Mount Size: 7-1/2 inch L x 7-1/2 inch W
• Oil Type: Polyolester (POE)
• Locked Rotor Current: 93A
