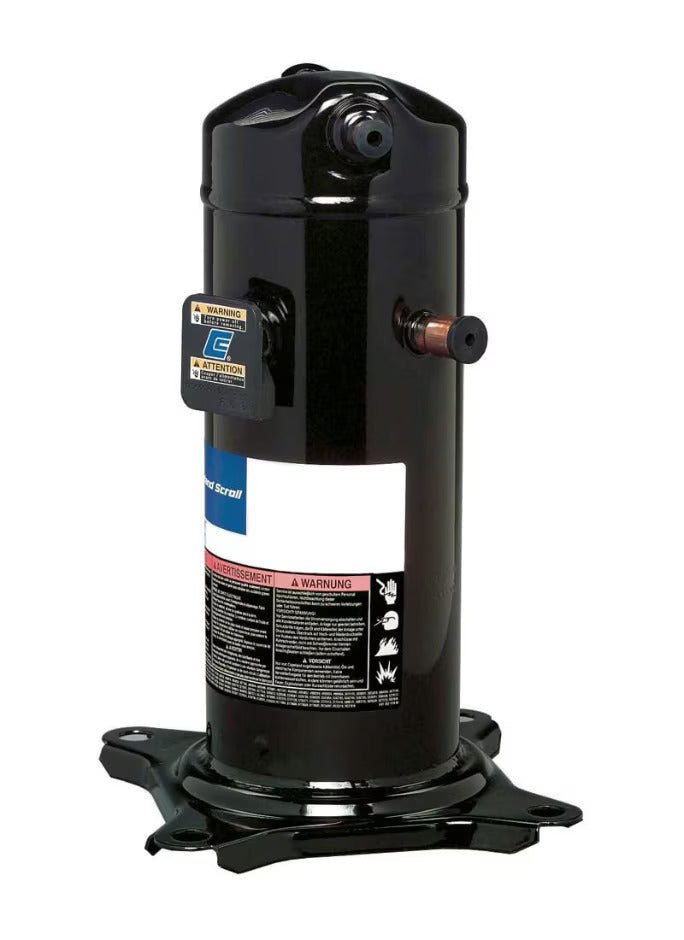

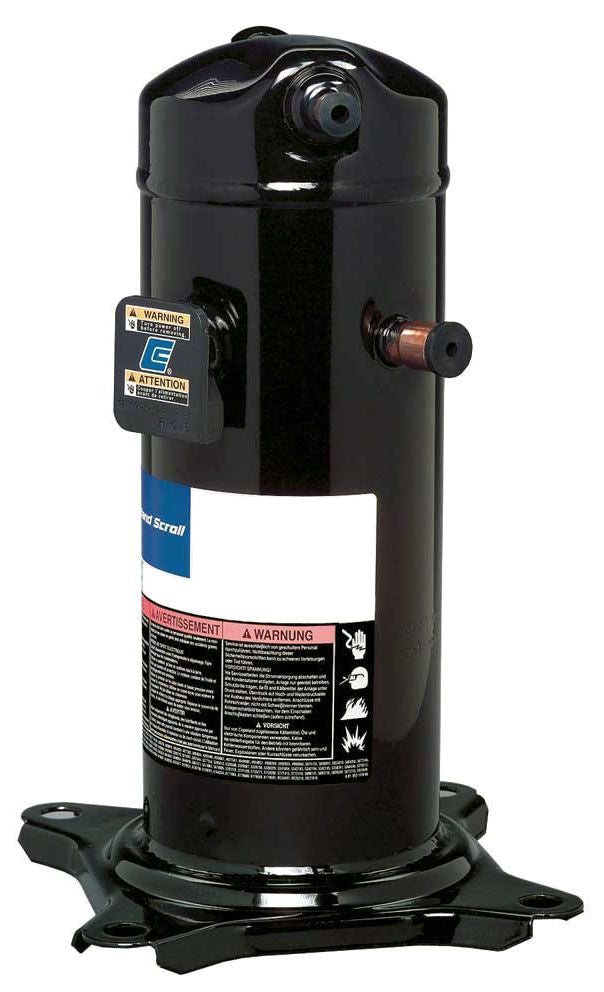

Rheem 55-102045-27S Ruud Compressor 51000 BTU ZP51K5E-TF5

Product Description

The Rheem 55-102045-27S Ruud compressor is a scroll compressor designed for condensing units. It operates at 208/230 Volt AC, 60 Hz, 3-Phase power and provides a capacity of 51000 BTU/Hour. This compressor is suitable for use with models 13ACN, RA13, RJNL-A, RJNL-C, and RJPL-A.

• Refrigerant Type R410A
• Suction Line Size 7/8 Inch, Discharge Line Size 1/2 Inch
• Mounting Base Dimension 7-1/2 Inch x 7-1/2 Inch

Product Highlights

The Rheem 55-102045-27S compressor is designed for use in air conditioning systems. It features a scroll design and is compatible with R-410A refrigerant.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 55-102045-27S
• Country of Origin: USA

Technical Specifications

• Item: Compressor, Scroll
• Used On Item: Condensing Unit
• Used On Model Brand: 13ACN, RA13, RJNL-A, RJNL-C, RJPL-A
• Manufacturer Name: Rheem
• Manufacturer Part Number: 55-102045-27S
• Voltage Rating: 208/230VAC
• Nominal Capacity: 51000 BTUH
• Frequency Rating: 60 Hz
• Phase: 3
• Rated Load Amperage: 17.8A
• Refrigerant Type: R-410A
• Discharge Line Size: 1/2 inch
• Suction Line Size: 7/8 inch
• Oil Type: POE
• Voltage: 208/230 Volts
• Suitable For Use With: RA1360AC1NB Air Conditioner Condenser
• Brand: Rheem Ruud
• Condition: New
• Overall Height: 16-5/8 Inch
• Suction Line Height: 11-5/8 Inch
• Discharge Line Height: 15-1/2 Inch
• Suction Line Configuration: Stub Out
• Discharge Line Configuration: Stub Out
• Mounting Base Dimension: 7-1/2 Inch x 7-1/2 Inch
