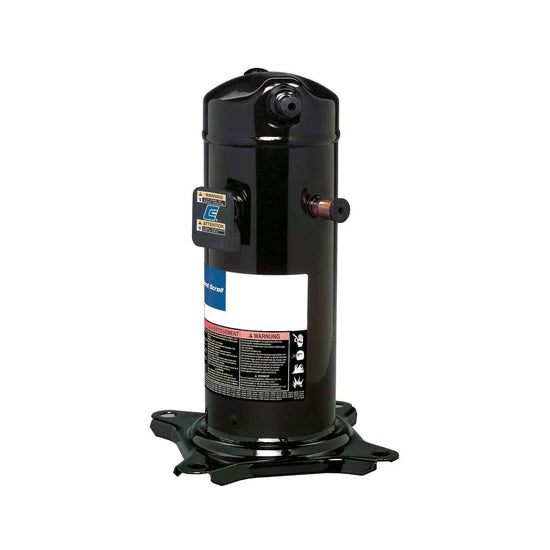

Rheem 55-102045-03S (ZP31K5E-PFV) Copeland Scroll Compressor, R-410A, Single-Phase, 1-5 HP, 31000 BTU, 208/230 Volts

Product Description

The Rheem 55-102045-03S (ZP31K5E-PFV) is a Copeland Scroll compressor designed for HVAC applications. This single-phase compressor operates using the R-410A refrigerant. It provides efficient cooling with a capacity of thirty-one thousand BTU. It's suitable for various residential and commercial systems.

• Compressor type: scroll
• Power: one to five HP
• Input voltage: two hundred eight to two hundred thirty volts

Product Highlights

This compressor features robust construction and reliable performance. Ideal for both new installations and replacements, its compact design allows for easy installation in tight spaces.

Product Information

Standard Information

• Manufacturer: Rheem
• Model: 55-102045-03S (ZP31K5E-PFV)

Technical Specifications

• Kick Start: 42-TO5
• Run Capacitor (µF/V): 45/370
• Start Capacitor Capacitance (µF/V): 88-106/330
• Start Relay Part Number: 42-25105-01
• Capacity (BTU/hr): 31000
• Input Voltage (V): 208-230
• Locked Rotor Current (A): 79
• Max Continuous Current (A): 26
• Overall Compressor Height (in): 15-3/8
• Refrigerant: R-410A
• Number of Phases: 1
• Frequency (Hz): 60
