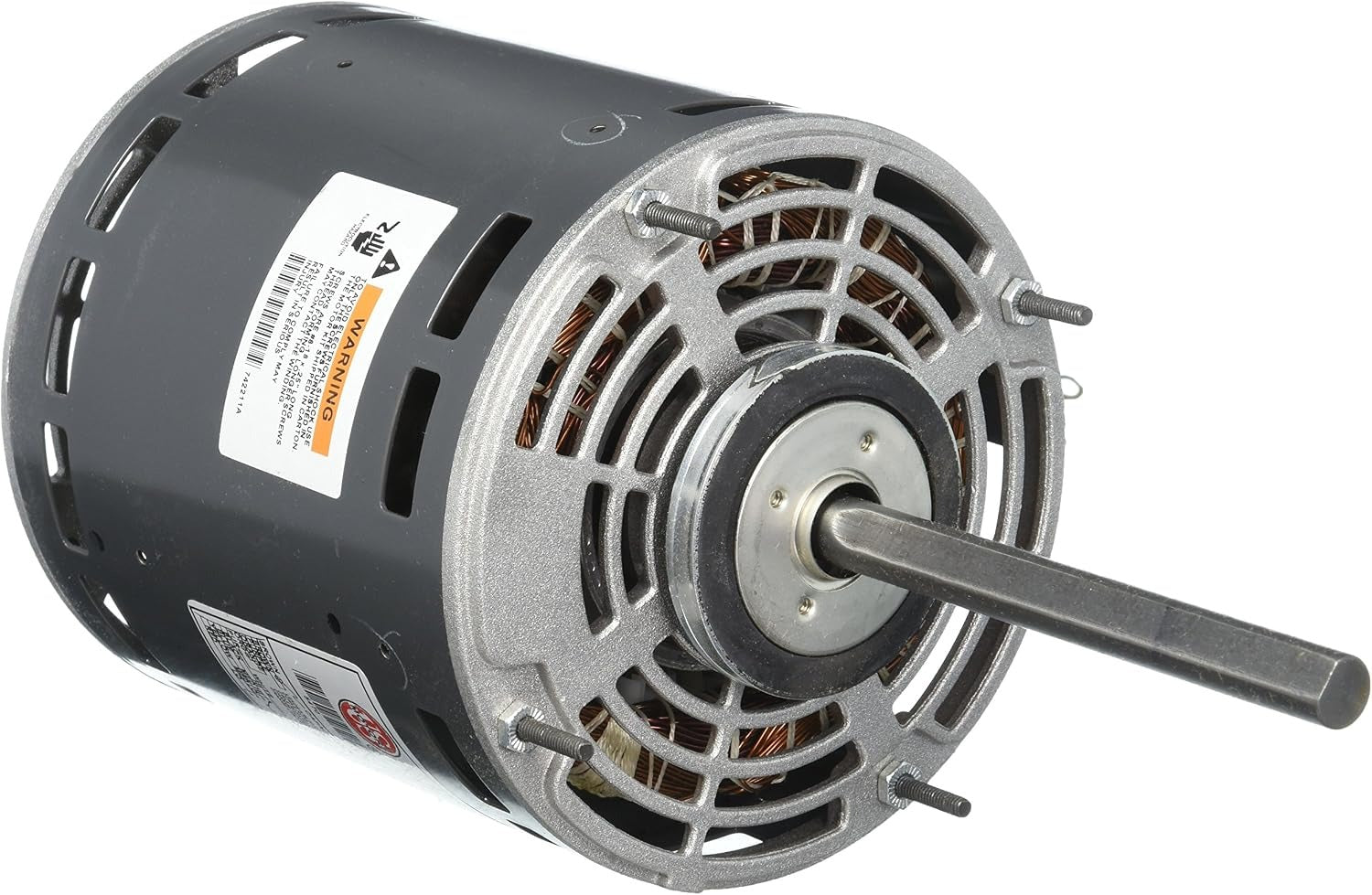

Rheem 5470 Rescue Blower Motor 1/5-3/4 hp (All-angle) ML5470

Product Description

Rheem 5470 is a RESCUE blower motor for furnace and air handler applications rated for 1/5 to 3/4 hp. The 120 V, single-phase motor runs at approximately 1075 RPM and provides four selectable speeds for direct-drive blower and fan systems. It is continuous-duty, air-over rated, features Class B insulation, reversible rotation, automatic reset thermal overload protection, and is intended for use with a 20/370 run capacitor.

• Supports 1/5 to 3/4 hp range; 120 V, single-phase electrical rating with approximately 1075 RPM and 4 speeds.
• Direct drive design with ball bearings, all-angle mount options, reversible rotation, and continuous-duty air-over operation.
• Class B insulation, automatic reset thermal overload protection, 24-inch leads, and requires a 20 µF / 370 VAC run capacitor.

Product Highlights

Multi-horsepower, 4-speed, direct-drive blower motor with reversible rotation and thermal overload protection.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 5470
• Country of Origin: United States
