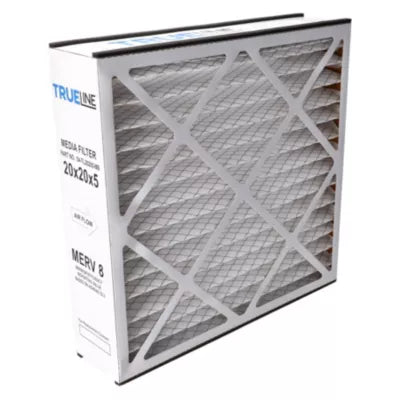

Rheem 54-tl20205-m8 Trueline Merv 8 Media Filter 5x20x20

Product Description

The RHEEM 54-tl20205-m8 is a TrueLine MERV 8 media air filter designed as a replacement for forced-air HVAC systems. Measuring 5 inches by 20 inches by 20 inches, it captures airborne particles as small as 1.0 microns, including bacteria, dust, pet dander, and pollen. Finger-supported vertical pleats remain evenly spaced under airflow, maximizing dirt-holding capacity while maintaining a low pressure drop across the filter media. A factory-installed double gasket on the top and bottom eliminates filter bypass, ensuring all return air passes through the media. Licensed HVAC technicians and building maintenance professionals handle installation and scheduled replacement.

This filter suits residential and light commercial applications where a forced-air air handler or furnace uses a 5-inch deep media cabinet. It is rated for use with all types of forced-air HVAC configurations, making it a practical replacement across a wide range of residential and commercial air handler and furnace installations. Rheem recommends replacing the filter every 6 to 12 months to maintain system efficiency and protect downstream coils and blower components from particulate buildup.

Key Features

• MERV 8 rating captures particles as small as 1.0 microns, including bacteria, dust, dander, and pollen
• Finger-supported vertical pleats stay evenly spaced, maximizing dirt-holding capacity at low pressure drop
• Factory-installed double gasket on top and bottom eliminates filter bypass
• Moisture-resistant frame retains shape and structural integrity in high-humidity environments
• Galvanized, rust-resistant wire mesh supports media and holds pleat shape even when the filter is loaded with debris
• UL 900 listed

Compatibility

Designed as an OEM-style replacement media filter for forced-air HVAC systems using a 5-inch by 20-inch by 20-inch media filter cabinet.

Installation Notes

Installation and replacement should be performed by a licensed HVAC technician or qualified service professional. Always shut down the air handler or furnace and set the thermostat to the off position before opening the filter cabinet. Confirm the filter is seated fully and the gasket is compressed evenly on all sides before closing the cabinet door to prevent unfiltered bypass air. Follow local codes and the equipment manufacturer's maintenance schedule for replacement intervals.

Technical Specifications

• MERV Rating: 8
• Filter Depth: 5 inches
• Filter Width: 20 inches
• Filter Height: 20 inches
• Minimum Particle Capture Size: 1.0 microns
• Frame Material: Moisture-resistant
• Media Support: Galvanized rust-resistant wire mesh
• Gasket: Double gasket, factory installed, top and bottom
• Listing: UL 900
• Recommended Replacement Interval: Every 6 to 12 months
• Unit of Measure: Each

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 54-tl20205-m8
