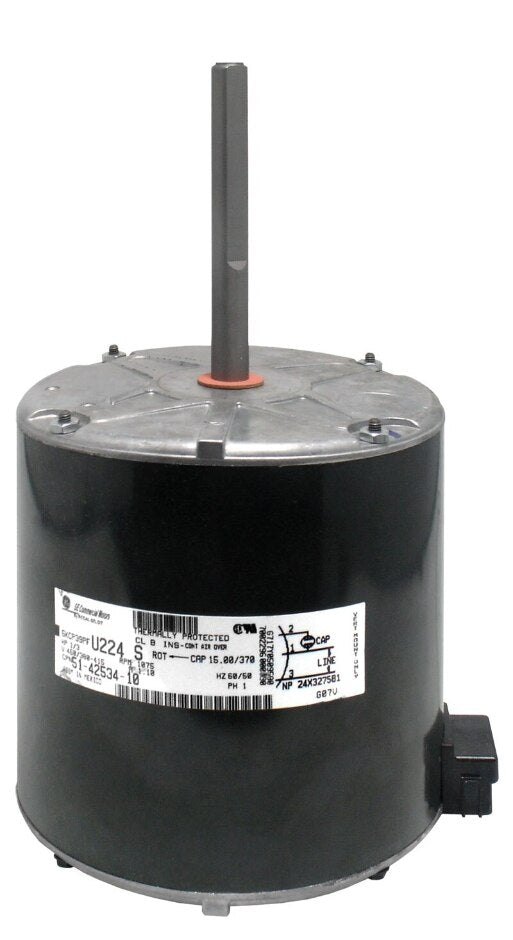

Rheem 51-42534-10 Condenser Motor 1/3 HP

Product Description

The Rheem 51-42534-10 is a condenser motor made for HVAC systems. This OEM part replaces worn motors in ventilators, fans, and blowers. It transfers heat from the refrigerant system to outside air, helping prevent compressor overheating. Designed to match original specifications, it ensures proper installation and reliable performance. This motor is intended for installation by licensed HVAC technicians.

• Condenser Motor - 1/3 HP, 1 Phase, 1 Speed, 380-415/460V, 1075 RPM
• OEM Genuine Factory Authorized Part
• Thermally protected with sleeve bearing

Product Highlights

The Rheem 51-42534-10 is engineered for consistent performance in HVAC systems.

Product Information

Standard Information

• Application: Condenser
• Bearing Type: Ball

Technical Specifications

• Drive Type: Direct Drive
• HP: 1/3
• Input Voltage (V): 380-415 | 460
• Frequency (Hz): 50 | 60
• High Speed (RPM): 1075
• Number of Phases: 1
• Number of Speeds: 1
• Rotation Direction (OSE): CCW
• Frame Size: 48
• FLA at 460V (A): 1.10
• LRA at 460V (A): 2.00
• Run Capacitor (uF/V): 15/370
• Mounting: Shell-band
