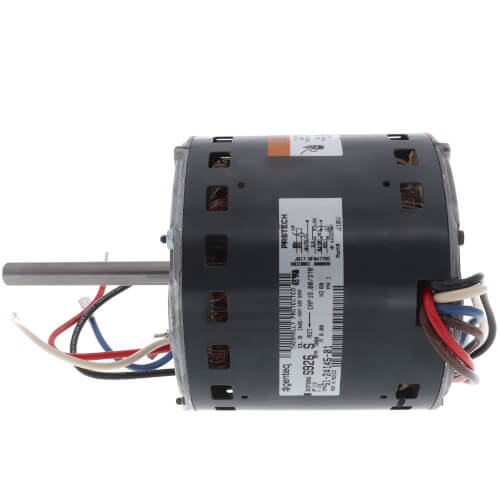

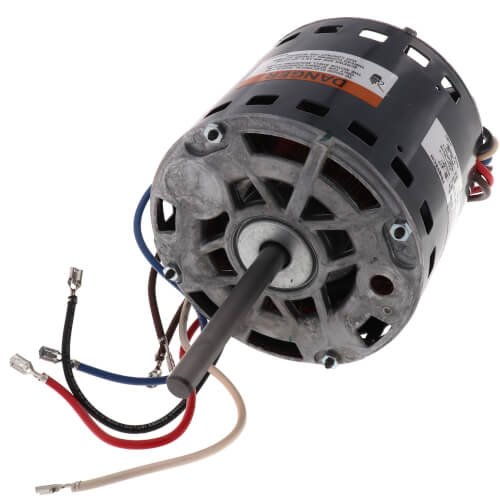

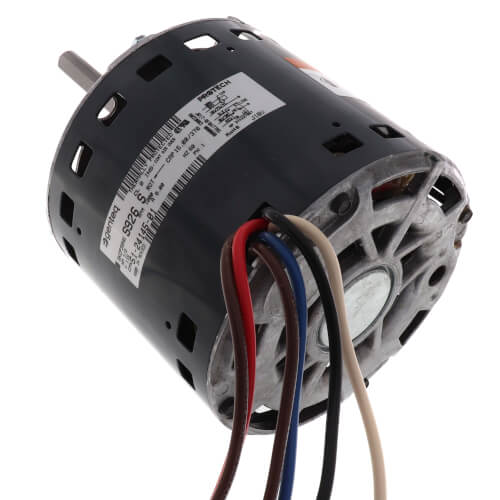

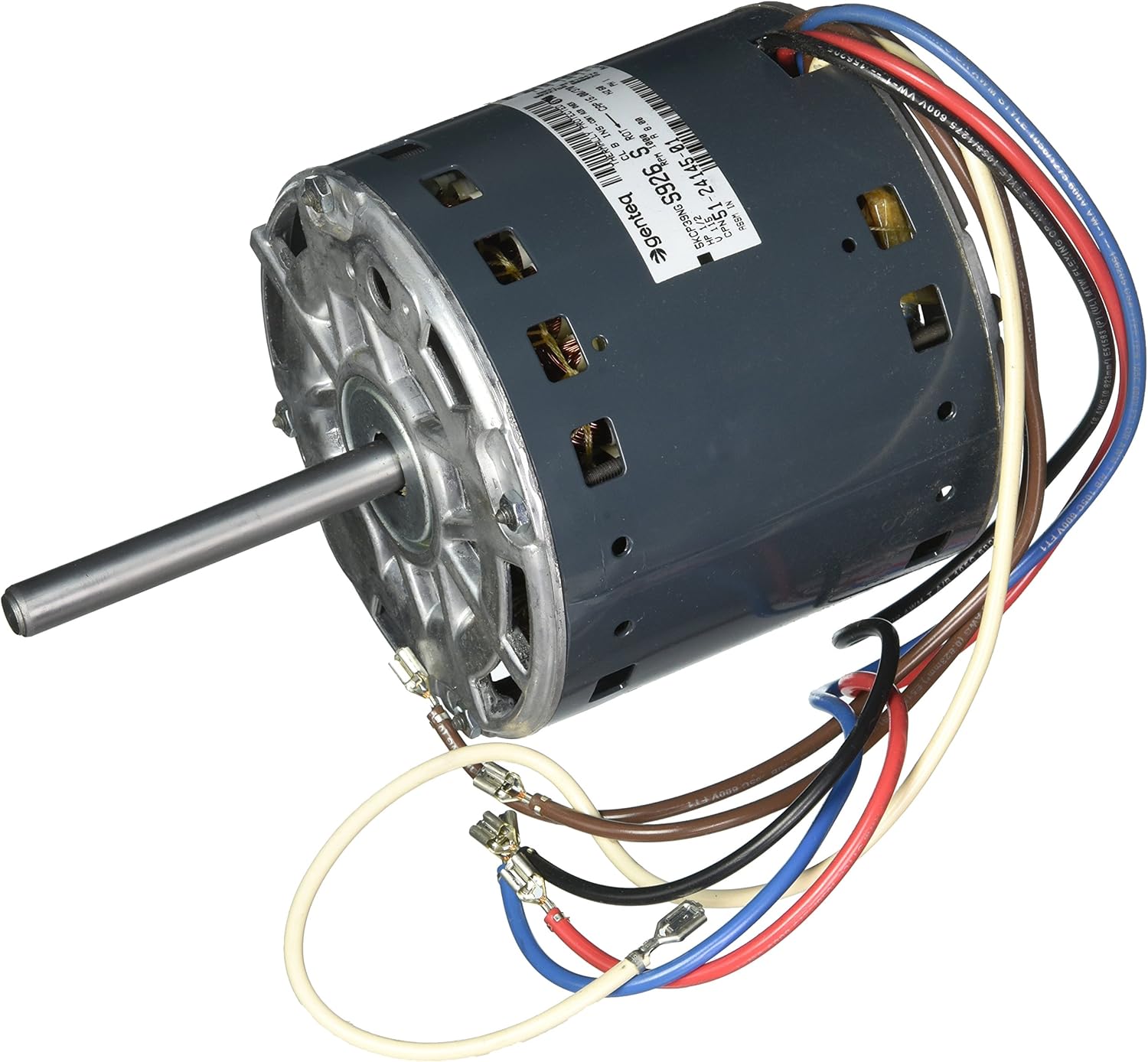

Rheem 51-24145-01 Blower Motor 1/2 HP 120V 1075 RPM 3 Speed

Product Description

The Rheem 51-24145-01 Blower Motor is a reliable motor designed for a variety of industrial applications. This 1/2 HP motor operates at 120 volts and delivers 1075 RPM with 3-speed functionality.

• 1/2 HP power output
• 120V compatibility
• 1075 RPM speed with 3-speed operation

Product Highlights

This motor is robust and ideal for use in demanding industrial environments, including HVAC systems, conveyors, and pumps. It is engineered for easy installation and ensures efficient performance, reducing operational costs.

Product Information

Standard Information

• Brand: Rheem
• MPN: 51-24145-01

Technical Specifications

• Power Output: 1/2 HP
• Voltage: 120 Volts
• Speed: 1075 RPM
• Speed Settings: 3
• Shaft Diameter: 0.5 inches
• Motor Body Diameter: 5.625 inches
• Overall Shaft Length: 3.75 inches
• Motor Body Length: 5.25 inches
• Overall Motor Length: 9.0625 inches
• Mounting: Shell-band, shell-screw
• Frame Size: 48
• Bearing Type: Sleeve
• Application: Blower
• Drive Type: Direct Drive
• Frequency: 60 Hz
• Weight: 15.96 lbs
• Rotation: CCW
