Rheem 51-23102-04 OEM One-Speed Direct Drive Indoor Blower Motor, 1/2 HP

Product Description

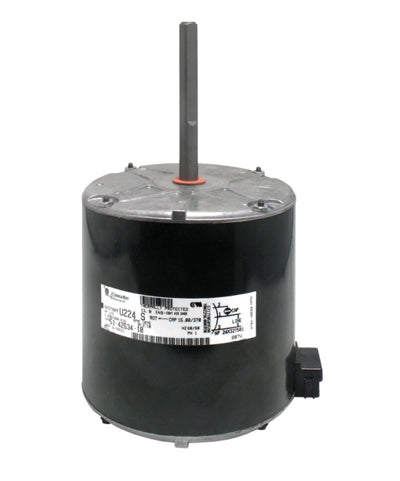

The Rheem 51-23102-04 is an OEM one-speed direct drive indoor blower motor. This motor operates at one-half horsepower and is designed for indoor applications, particularly in HVAC systems.

• Rated at 825 RPM for effective airflow.
• Mounting options include shell-band and shell-screw for easy installation.
• Operates at 120 volts with a current of 6.80 FLA.

Product Highlights

This blower motor is ideal for replacing worn out motors in HVAC systems. It features a counterclockwise rotation for proper airflow direction.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: 058484

Technical Specifications

• Horsepower: 1/2
• FLA: 6.80
• LRA: 14.00
• Run Capacitor: 20/370
• Rotation Direction: CCW
• High Speed (RPM): 825
• Keyed/Flat Shaft Length: 1-1/2 inches
• Motor Body Diameter: 5-5/8 inches
• Motor Body Length: 5-1/4 inches
• Overall Motor Length: 8-1/2 inches
• Shaft Diameter: 1/2 inches
• Application: Blower
• Drive Type: Direct Drive
• Frame Size: 48
• Bearing Type: Sleeve
• Frequency: 50-60 Hz
• No of Phases: 1
• No of Speeds: 1
• Input Voltage: 120 V
• UPC: 662766248531
