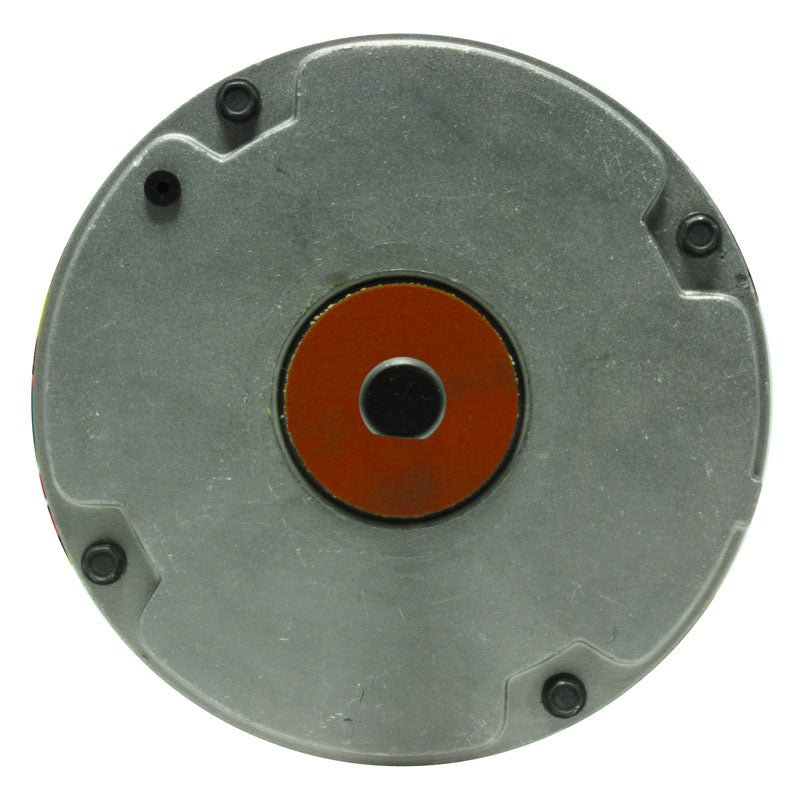

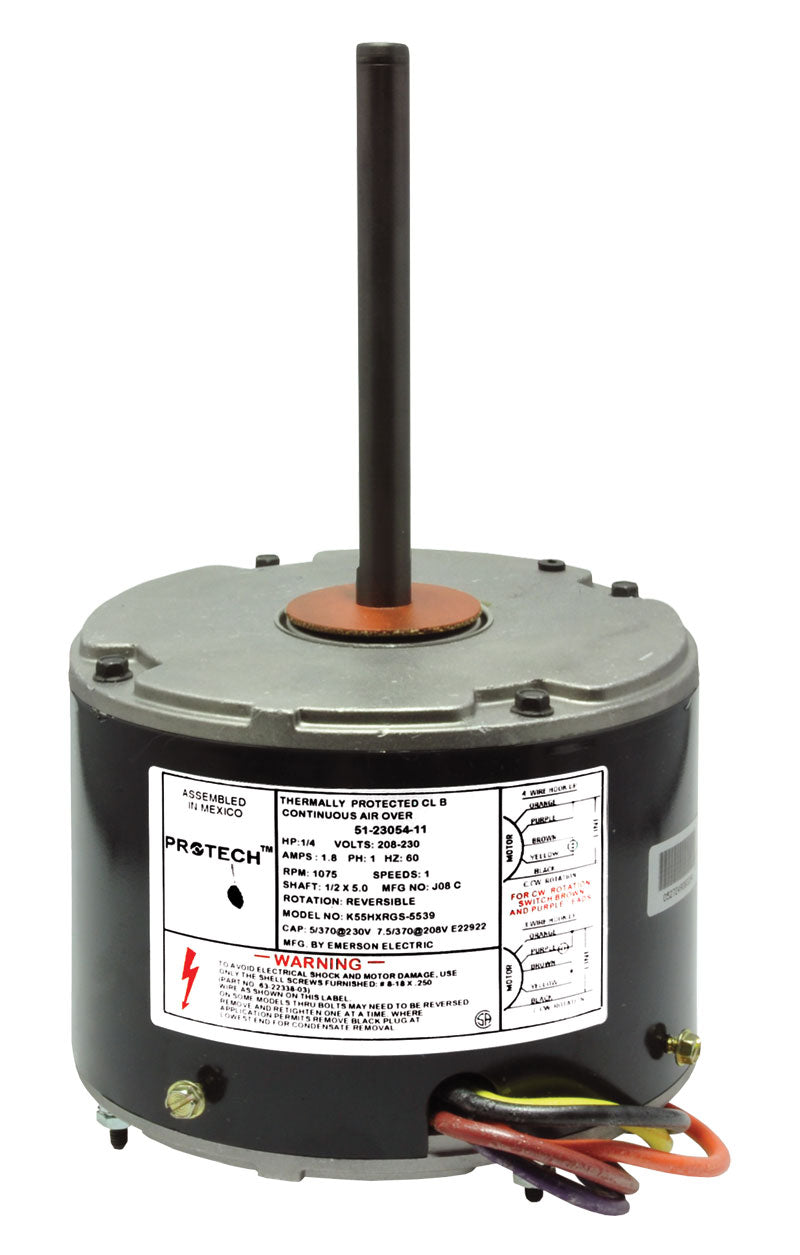

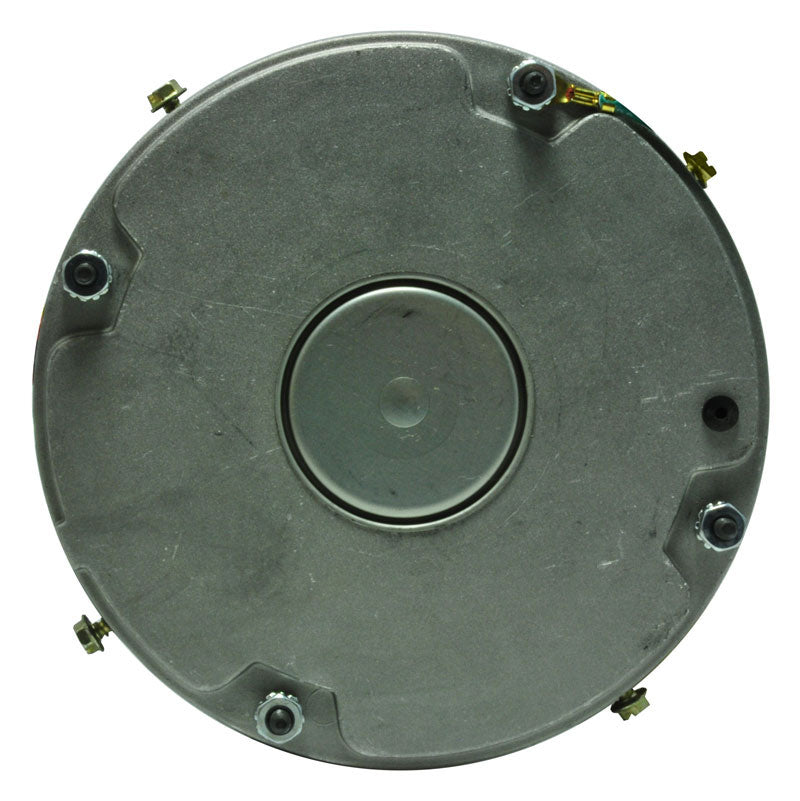

Rheem 51-23054-11 Wholesale One-Speed Direct Drive Outdoor Condenser Motor 1/4 HP (208/230V)

Product Description

The Rheem model 51-23054-11 is a one-speed outdoor condenser motor designed for efficient operation. This direct drive motor operates at a horsepower of one-fourth and a speed of one thousand seventy-five RPM. It is suited for condensing units and provides effective cooling performance.

• Power Rating: One-fourth HP
• Voltage: 208 to 230 V
• Rotation: Reversible

Product Highlights

This outdoor condenser motor is ideal for HVAC applications requiring reliable performance. It features a shell-band and thru-bolt mounting for versatile installation options.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: 058575

Technical Specifications

• HP: 1/4
• FLA: 1.80
• High Speed (RPM): 1075
• Low Speed (RPM): Not Specified
• Input Voltage (V): 208/230
• Mounting Type: Shell-band, Thru-bolt
• Overall Motor Length (in): 9-1/16
• Shaft Diameter (in): 1/2
• Frame Size: 48
• Bearing Type: Sleeve
• Drive Type: Direct Drive
• Application: Condenser
• Frequency: 60 Hz
• No of Phases: 1
• No of Speeds: 1
