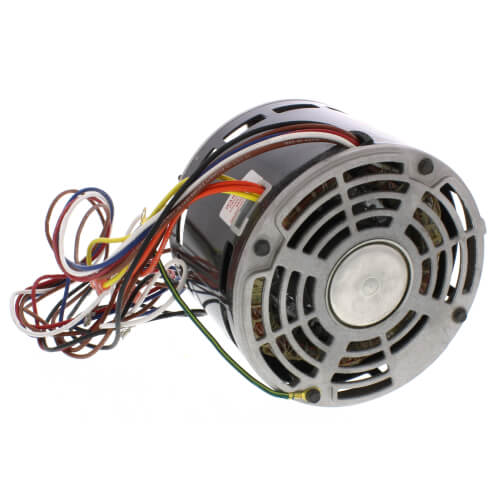

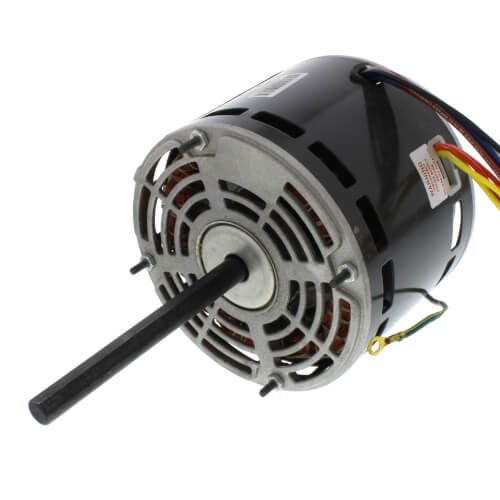

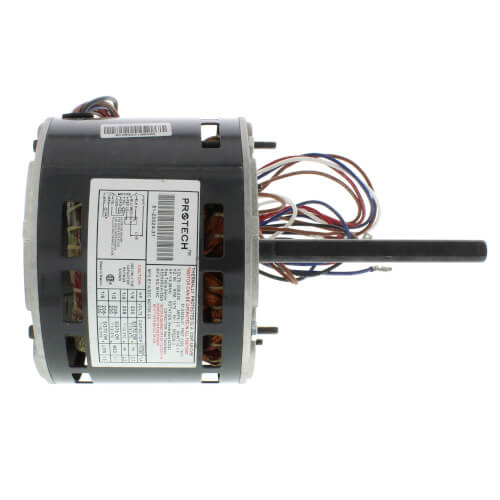

Rheem 51-23024-31 1/4HP 208-230V 1075RPM 3-Speed Replacement Motor

Product Description

The Rheem 51-23024-31 is a durable 1/4 horsepower motor, perfect for HVAC technicians looking to replace or upgrade their equipment. Ideal for various applications, this motor ensures efficient operation with its 1075 revolutions per minute and compatibility with multiple models including RRKA and RRMA series.

• Operates effectively at 208 to 230 volts
• Designed with three speeds to match system requirements
• Reversible rotation facilitates easy installation and integration

Product Highlights

Its robust design features a sleeve bearing type, a 5/370 capacitor, and supports direct drive configuration. Additionally, the motor's reversible feature ensures it can be adapted to various setups enhancing versatility.

Product Information

Standard Information

• Frame Size: 48
• Motor Body Length: 4-1/4 inches

Technical Specifications

• RPM: 1075
• Voltage: 208 to 230 Volts
• Horsepower: 1/4 hp
• Capacitor: 5/370 uF/V
• Amperage: 2A Full Load at 120V
• Shaft Diameter: 1/2 inch
• Overall Length: 13 inches
• Bearing Type: Sleeve
