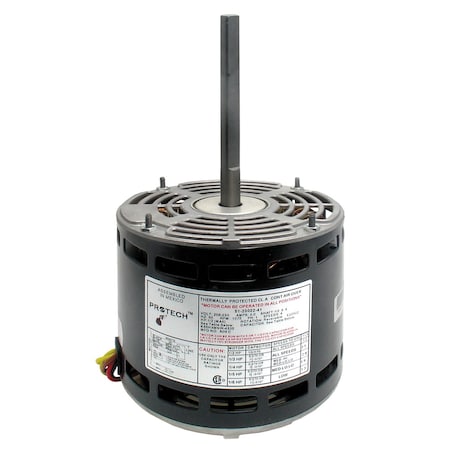

Rheem 51-23022-41 Electric Motor, 1/6-1/2HP, 208-230V, 1075RPM

Product Description

The Rheem 51-23022-41 Electric Motor offers reliable performance for various HVAC applications. Featuring a power range of 1/6 to 1/2 horsepower and an operational voltage of 208-230 volts, this motor is designed for effectiveness and durability.

• Operates at 1075 RPM, providing sufficient torque for most HVAC systems.
• Features reversible rotation and sleeve bearing for versatile installation and operation.
• Constructed with a NEMA 48 frame for robustness and compatibility with various systems.

Product Highlights

This Rheem electric motor is engineered to meet rigorous industrial demands, ensuring long-lasting functionality and exceptional energy efficiency, making it an ideal choice for replacement in HVAC systems.

Product Information

Standard Information

• Brand: Rheem
• MPN: 51-23022-41

Technical Specifications

• Power: 1/6-1/2 HP
• Voltage: 208 to 230V
• RPM: 1075 RPM
• Phase: 1-Phase
• Mounting: Shell-Band, Thru-Bolt
• Shaft Diameter: 1/2 inch
• Shaft Length: 5 inches
• Frame: NEMA 48
• Rotation: Reversible
• Amperage Rating: 3.6A
