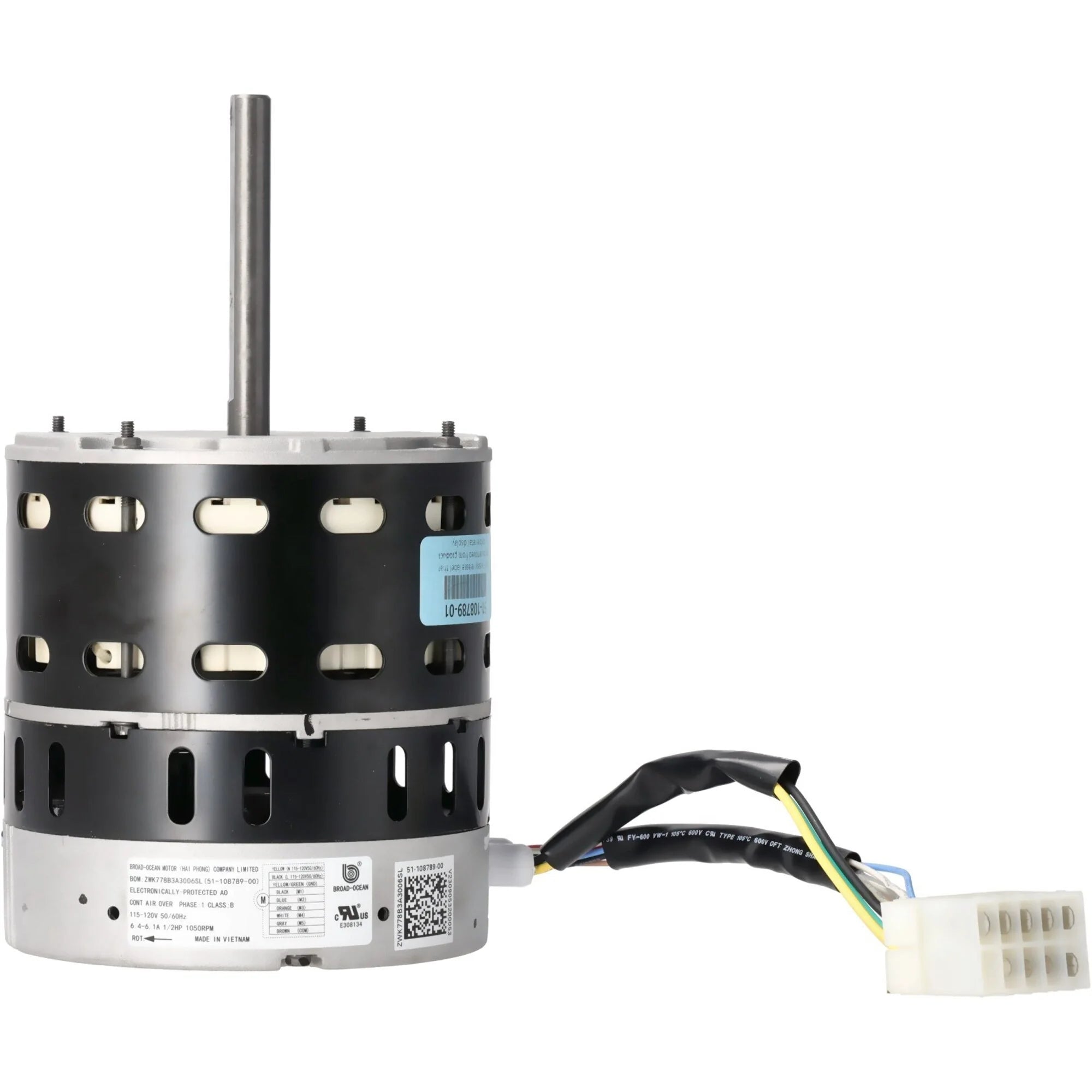

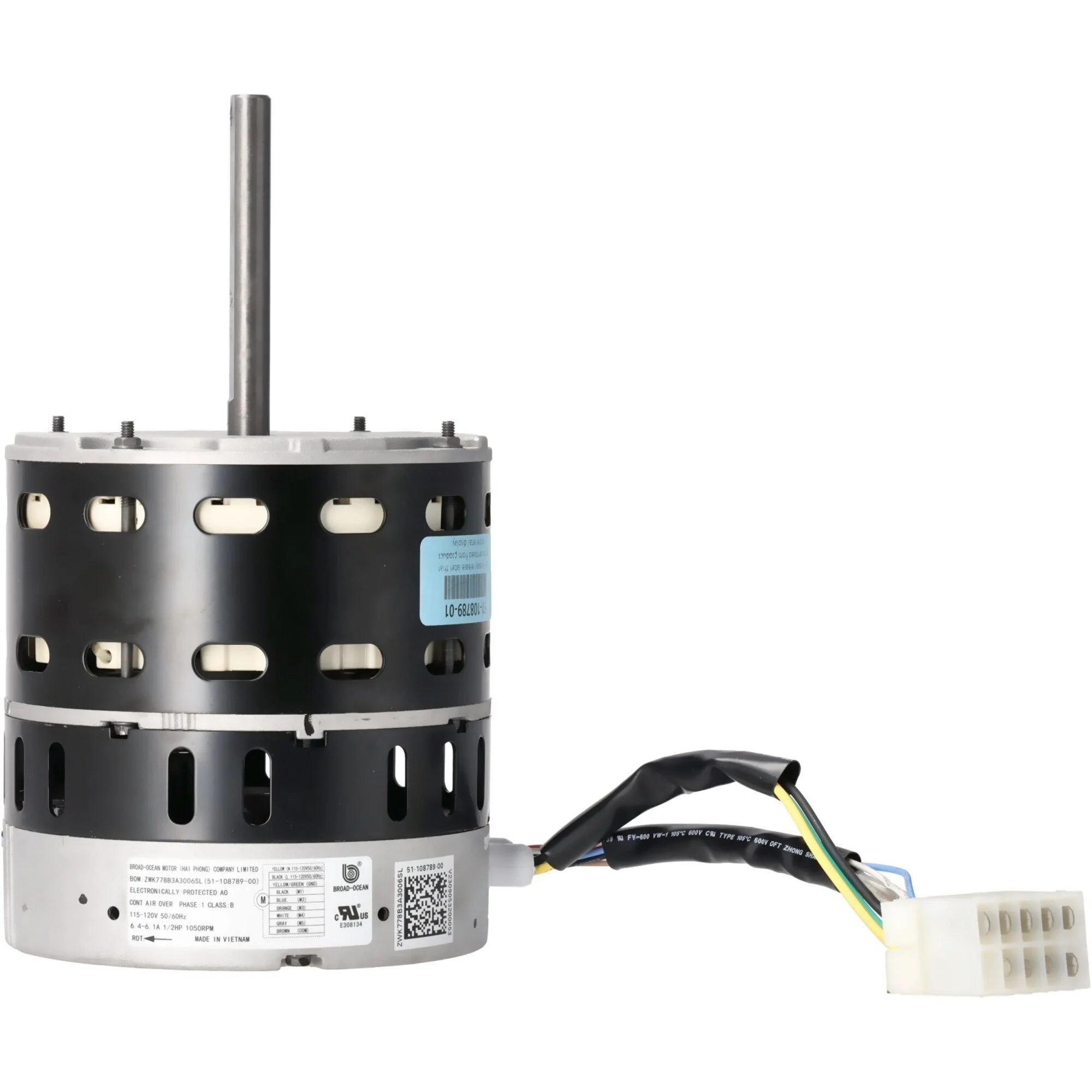

Rheem 51-108789-01 Motor Broad Ocean 1/2 Hp (120V) 51-108789-00

Product Description

Rheem 51-108789-01 is a Broad Ocean blower motor rated 1/2 horsepower and 120V intended for HVAC blower applications. The direct-drive motor uses ball bearings, provides reversible rotation and five selectable speeds with a high speed of 1050 RPM. Physical dimensions include a 5.67 in motor body diameter, 9.81 in overall length, 3.92 in shaft length and a 0.50 in shaft diameter. Full-load current at 120V is 6.40 A.

• Direct drive blower motor with ball-bearing construction for HVAC applications
• Five speeds and reversible rotation; high speed 1050 RPM; full-load current 6.40 A at 120V
• Shell-band mounting; motor body diameter 5.67 in, overall length 9.81 in, shaft 0.50 in diameter and 3.92 in length

Product Highlights

Broad Ocean 1/2 hp direct-drive blower motor for Rheem equipment; 120V, 6.40 A, five speeds, reversible rotation; replacement component 51-108789-00.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 51-108789-01

Technical Specifications

• Brand: Rheem
• MPN: 51-108789-01
• Application: Blower (HVAC blower motor)
• Motor Type: BO (Broad Ocean)
• Horsepower: 1/2 hp
• Input Voltage: 120 V
• Full Load Amps: 6.40 A
• Max Speed (RPM): 1050
• Drive Type: Direct drive
• Bearing Type: Ball
• Number of Speeds: 5
• Rotation Direction: Reversible
• Mounting Type: Shell-band
• Motor Body Diameter: 5.67 in
• Overall Motor Length: 9.81 in
• Shaft Length: 3.92 in
• Shaft Diameter: 0.50 in
• Component Reference / Replacement MPN: 51-108789-00
