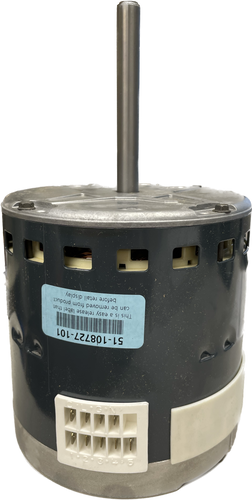

RHEEM 51-108727-03 Ensite Air Blower Motor

Product Description

The Rheem 51-108727-03 is an Ensite Air blower motor. It is designed for direct drive applications. This single-phase motor offers variable speed options. It accepts input voltages of two hundred eight or two hundred thirty volts and can operate on both fifty Hz and sixty Hz frequencies.

• Motor suitable for blower drive applications.
• Equipped with a half-inch diameter shaft.
• Utilizes a direct drive system.

Product Highlights

Durable and efficient, this motor is designed for reliable performance in various applications.

Product Information

Standard Information

• Motor Type: Ensite Air
• Horsepower: 1/3

Technical Specifications

• Number of Speeds: Variable
• Input Voltage: 208, 230 V
• Number of Phases: 1
• Frequency: 50, 60 Hz
• Shaft Diameter: 1/2 in.
• Motor Body Diameter: 5-9/16 in.
• Keyed/Flat Shaft Length: 3-1/2 in.
• Overall Shaft Length: 3-15/16 in.
• Motor Body Length: 5-3/4 in.
• Overall Motor Length: 9-5/8 in.
• Mounting Type: Shell-band Frame
• Frame Size: 48
• Bearing Type: Ball
• Application: Blower Drive
• Drive Type: Direct Drive
• Replacement Module: Not Available
• Blank Motor: 51-108727-00
• Programming Kit: PD510011
