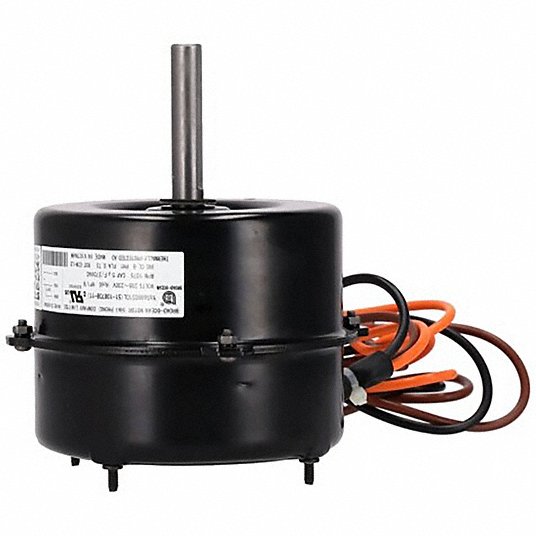

RHEEM 51-108708-11 1/8 H.P. Direct Drive Motor

Product Description

The RHEEM 51-108708-11 is a 1/8 H.P. Direct Drive Motor designed for HVAC systems. This OEM replacement motor is suitable for maintaining performance in compatible systems like UHKA and UHKL Air Handlers.

• OEM replacement HVAC AC motor
• Designed to fit existing equipment
• Ensures reliable operation

Product Highlights

This motor is ideal for replacing worn-out parts in air handlers, ensuring consistent airflow and functionality.

Product Information

Standard Information

• Manufacturer Part Number: 51-108708-11
• Product Type: OEM Replacement Motor

Technical Specifications

• Compatible Brand: RUUD; Weatherking
• Phase: Single
• Motor Design: Capacitor-Start
• Nameplate Horsepower @ 60 Hz: 1/8 hp
• Nameplate RPM @ 60 Hz: 1,075 RPM
• Nameplate Voltage @ 60 Hz: 208-230V AC
• Frame Size: 48
• Full Load Current @ 60 Hz: 0.73 A
• Shaft Diameter: 1/2 in
• Capacitor Required: Capacitor Included
• Overall Length: 6-3/16 in
• Motor Shaft Rotation: CW/CCW
• Number of Speeds: 1
• Mounting Type: Belly Band
• Motor Thermal Protection: Auto
• Application: Fan/Blower
• Motor Enclosure Type: Totally Enclosed Air-Over
• Nameplate Service Factor @ 60 Hz: 1
• HP Rating: 1/8 hp
• Suitable For Use With: UHKA and UHKL Air Handlers
