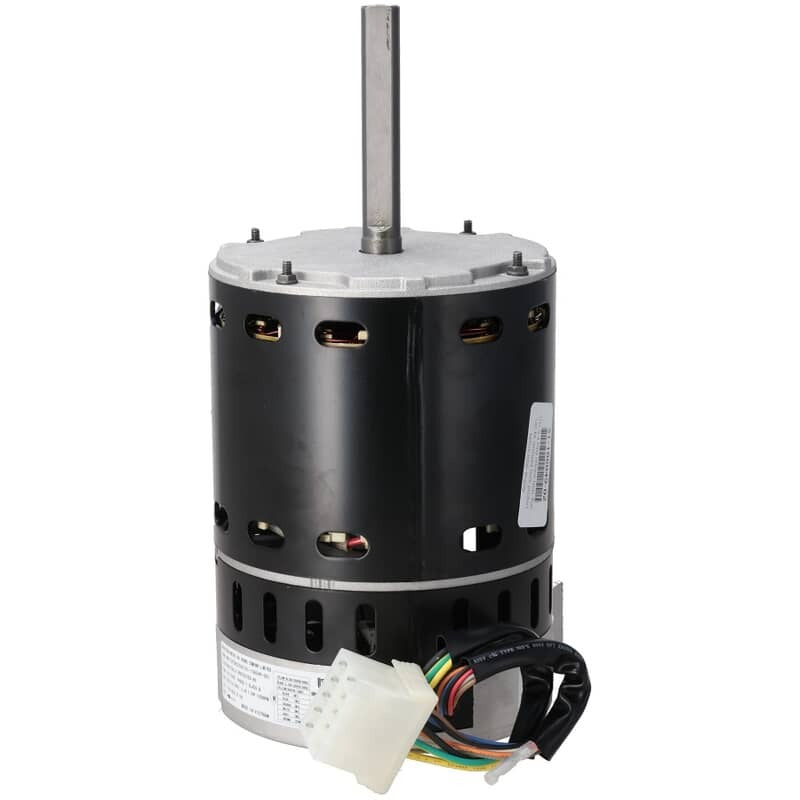

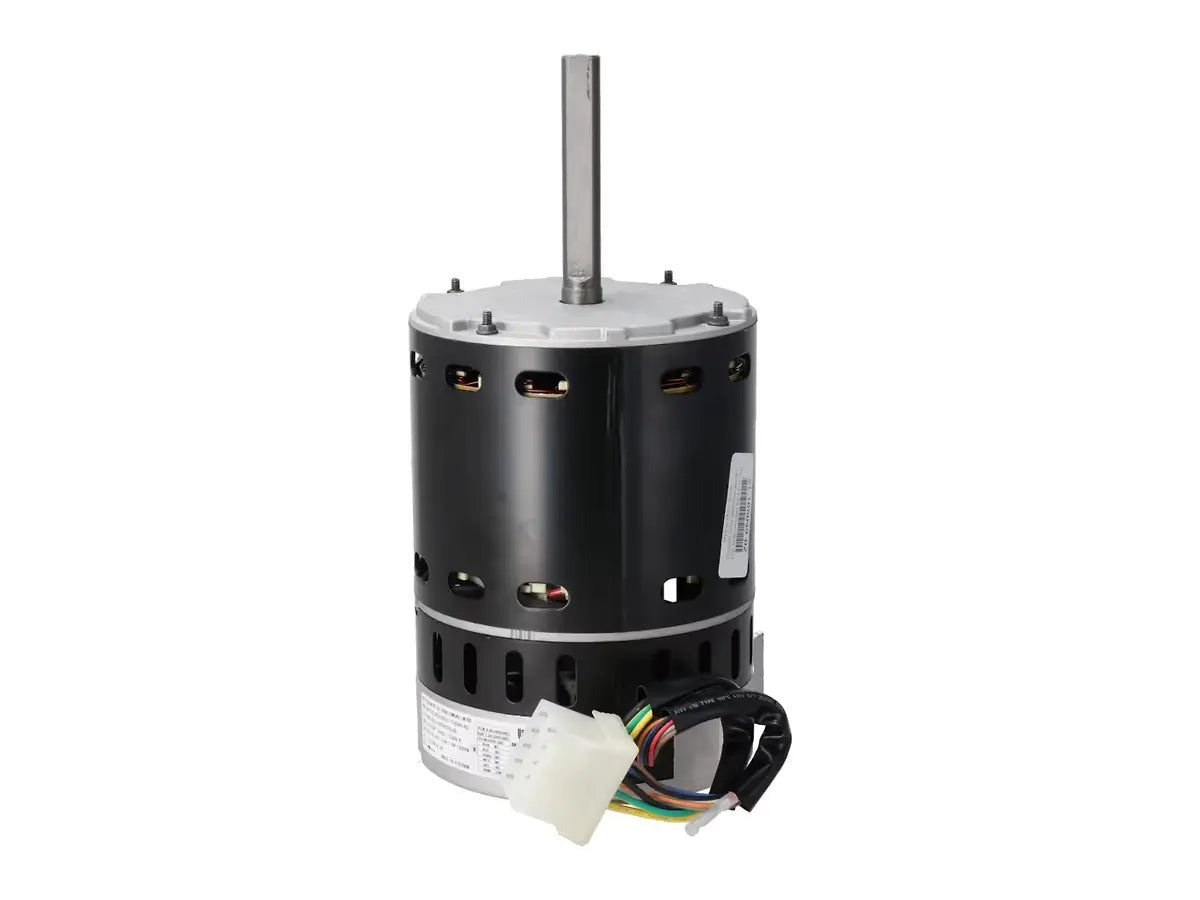

Rheem 51-108049-02 Motor Broad Ocean 1.2 Hp 230V (Frame 48) RHM51-108049-02

Product Description

The Rheem 51-108049-02 is a Broad Ocean blower motor rated at 1.2 HP and 230 V, configured as a direct-drive replacement for compatible Rheem HVAC equipment. It uses ball bearings, offers five selectable speeds, and has counterclockwise (CCW) rotation (OSE) with a frame size of 48 and a high speed of 1300 RPM. The motor is designed for shell-band mounting and blower applications.

• 1.2 HP, 230 V Broad Ocean direct-drive blower motor; Full Load Amps 6.60 A.
• Ball bearing construction, five speeds, CCW (OSE) rotation; frame size 48, high speed 1300 RPM.
• Shaft diameter 0.63 in; overall motor length 11.58 in and overall shaft length 3.92 in; shell-band mounting for blower replacement.

Product Highlights

Direct-drive 1.2 HP blower motor for Rheem equipment; 5-speed, CCW rotation, ball bearings.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 51-108049-02
• Country of Origin: United States
