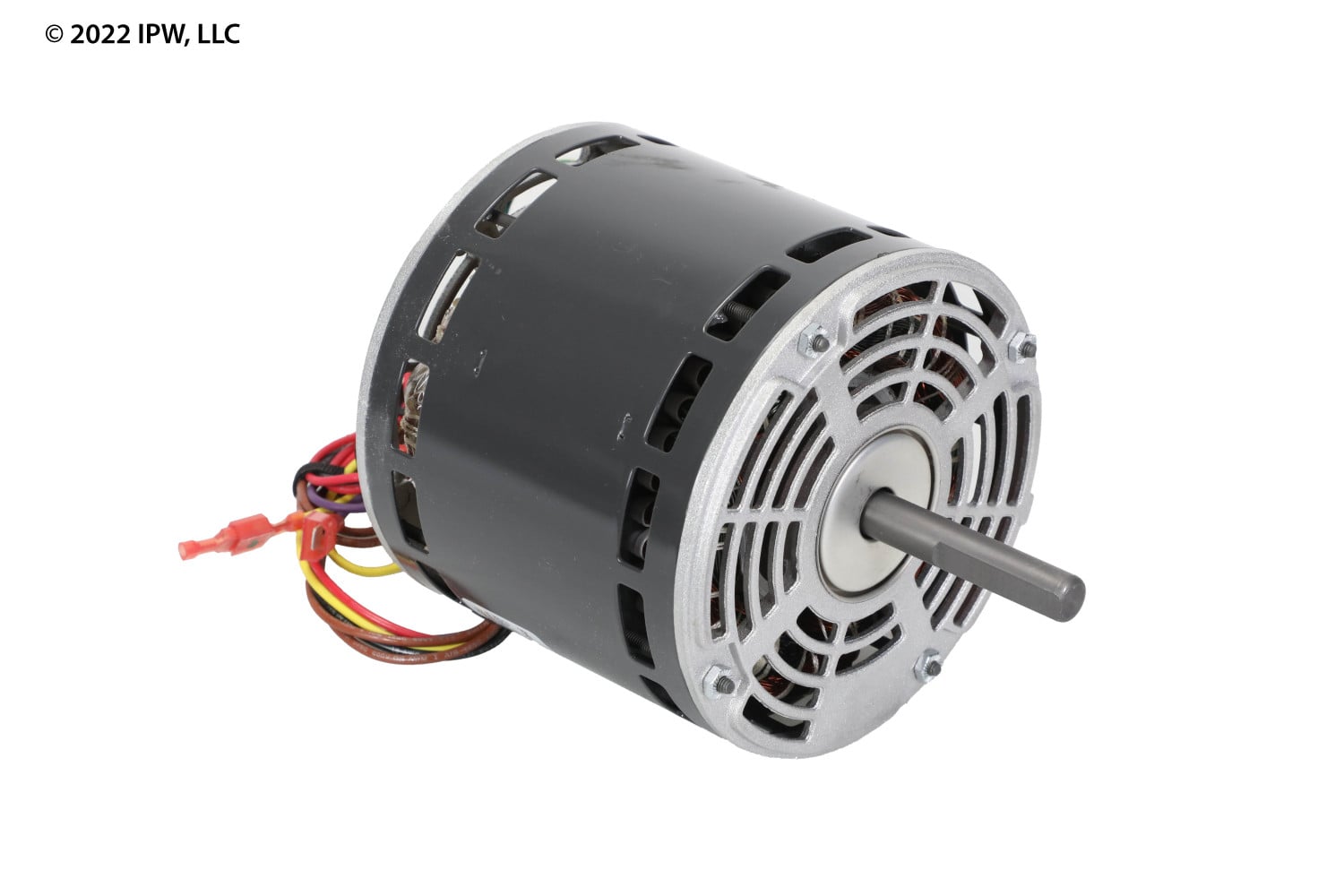

Rheem 51-106524-01 Condenser Fan Motor 1/3 Hp 208/230V

Product Description

The RHEEM 51-106524-01 is a 2-speed condenser fan motor designed for residential and light commercial HVAC applications. Rated at 1/3 HP and compatible with 208/230-volt single-phase power supplies, this motor operates at 1075 RPM and provides reliable airflow across the condenser coil in split-system air conditioning and heat pump units. Licensed HVAC technicians install this motor as a direct OEM-style replacement when the original unit fails due to winding failure, bearing wear, or capacitor-related damage. Its dual-speed capability gives the system control over airflow staging, supporting efficient condenser operation across varying load conditions.

This motor is suited for split-system condensing units in residential and light commercial installations. It is a common service replacement for condenser fan motors that have reached end of life or suffered electrical failure. The 208/230-volt rating makes it compatible with standard single-phase residential and commercial power configurations found throughout North America. Technicians working on rooftop or ground-level condensing units will find this motor appropriate for standard OEM replacement procedures.

Key Features

• 1/3 HP output for condenser fan duty in split-system HVAC equipment
• 208/230-volt single-phase input covers standard residential and light commercial supply voltages
• 1075 RPM operating speed delivers consistent airflow across the condenser coil
• 2-speed design supports staged airflow control for improved system efficiency
• OEM part number ensures direct fitment for applicable RHEEM and Ruud equipment

Compatibility

Designed as an OEM-style replacement condenser fan motor for applicable RHEEM and Ruud split-system condensing units requiring a 1/3 HP, 208/230-volt, 2-speed motor at 1075 RPM.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the condensing unit before removing the existing motor or any wiring connections. Verify that the replacement motor rotation direction matches the original before powering the unit. Refer to the unit wiring diagram and local electrical codes when reconnecting motor leads.

Technical Specifications

• Horsepower: 1/3 HP
• Voltage: 208/230 volts
• Phase: 1-phase
• Speed: 1075 RPM
• Number of Speeds: 2

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 51-106524-01
