Rheem 51-106100-05 Condenser Fan Motor 1/2 Hp 208-230V

Product Description

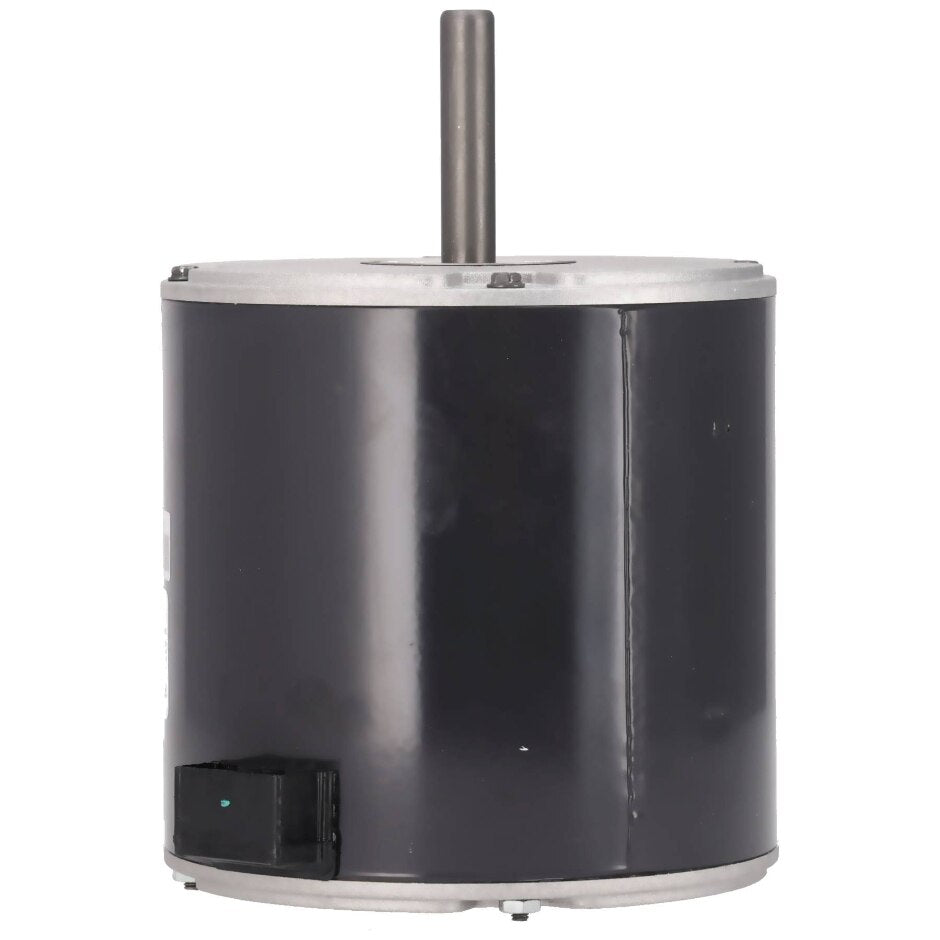

The RHEEM 51-106100-05 is a genuine OEM replacement condenser fan motor designed for use in RHEEM condensing units. Rated at 1/2 horsepower and operating on 208-230 volt single-phase power at 50 or 60 Hz, this motor runs at 1075 RPM in a single-speed configuration. It moves air across the condenser coil to reject heat from the refrigerant circuit, making it a critical component in the outdoor unit of a split-system air conditioner or heat pump. HVAC service technicians install this motor as a direct OEM-specification replacement when the original unit fails due to bearing wear, winding failure, or thermal cutout trips.

This condenser fan motor is suited for residential and light commercial split-system cooling and heat pump equipment. It is installed in the outdoor condensing unit and is intended for applications requiring 208-230 volt single-phase power at either 50 or 60 Hz. The 1075 RPM single-speed design matches the original equipment specification, making it appropriate for service and replacement work on RHEEM outdoor units that call for this part number.

Key Features

• Genuine OEM RHEEM replacement part engineered to original factory specifications
• 1/2 HP output suitable for standard residential condensing unit airflow demands
• 208-230 volt single-phase operation compatible with standard residential and light commercial supply voltages
• Dual-frequency rating at 50 and 60 Hz broadens application compatibility
• 1075 RPM single-speed operation matches original condenser fan performance requirements

Compatibility

Designed as a genuine OEM-style replacement condenser fan motor for RHEEM outdoor condensing units that specify part number 51-106100-05. Consult the unit nameplate and service documentation to confirm fitment before installation.

Installation Notes

Condenser fan motor replacement is performed by licensed HVAC technicians. Disconnect and lock out all electrical power to the outdoor unit at the disconnect box before removing the fan assembly. Verify that the replacement motor shaft rotation direction matches the original before energizing the unit. Follow applicable local electrical codes and the equipment manufacturer service instructions when making wiring connections and securing the motor to the fan deck.

Technical Specifications

• Horsepower: 1/2 HP
• Voltage: 208-230 volts
• Phase: Single phase
• Frequency: 50/60 Hz
• Speed: 1075 RPM
• Number of Speeds: 1

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 51-106100-05
