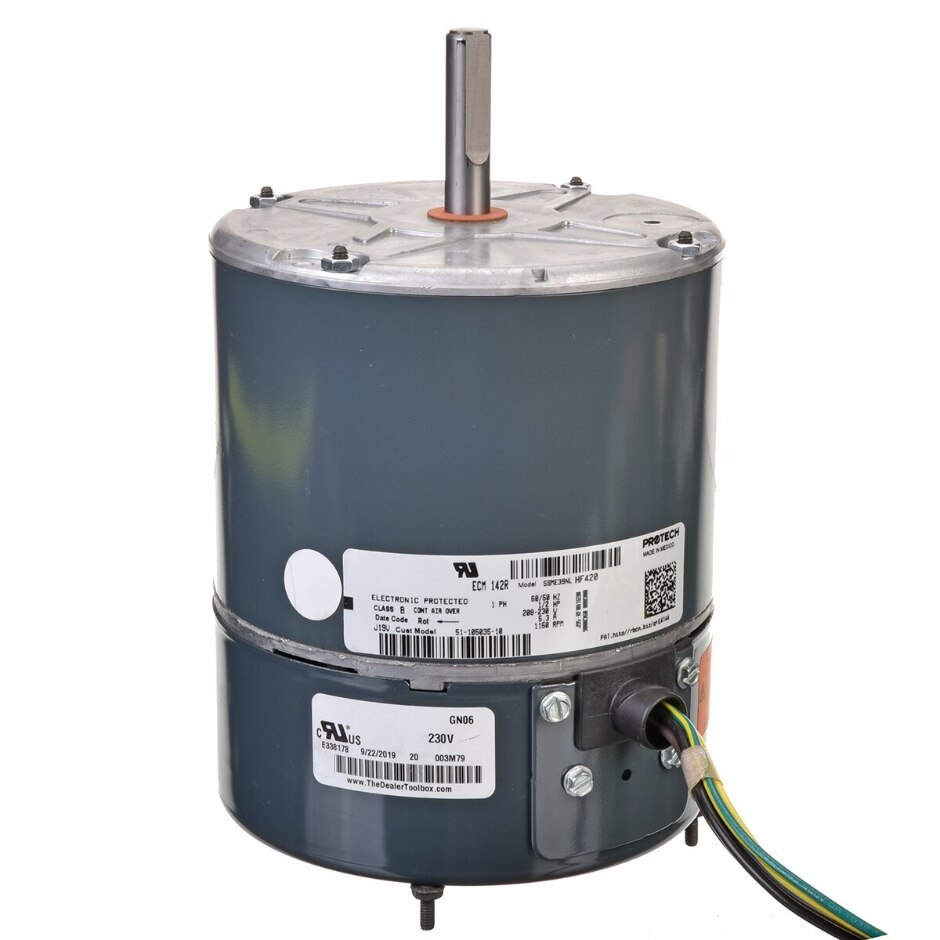

RHEEM 51-105035-10 ECM Condenser Motor

Product Description

The Rheem 51-105035-10 is an ECM condenser motor made for outdoor HVAC units. It serves as an OEM replacement part and is suitable for various models from Rheem, Ruud, and WeatherKing.

• OEM replacement motor for Rheem and Ruud units
• Designed for condenser applications
• Compatible with aftermarket applications

Product Highlights

This motor offers reliability and efficiency within condenser units. The easy installation makes it a practical choice for HVAC professionals looking for a durable replacement part.

Product Information

Standard Information

• Brand: Rheem
• MPN: 51-105035-10

Technical Specifications

• Frame Size: 39
• HP Rating: 1/2
• Rotation Direction: OSE, CCW
• Application: Condenser
• Drive Type: Belt Drive
• FLA at 208V: 5.3 A
• FLA at 230V: 5.3 A
• Frequency: 50-60 Hz
• Input Voltage: 208 V, 230 V
• Shaft Diameter: 1/2 in
• Shaft Length: 2 in
• Keyed/Flat Shaft Length: 1 1/4 in
• Overall Length: 8 7/8 in
• Bearing Type: Ball
• Motor Body Diameter: 5 5/8 in
• Motor Body Length: 6 3/4 in
• Mounting Method: Thru-bolt
