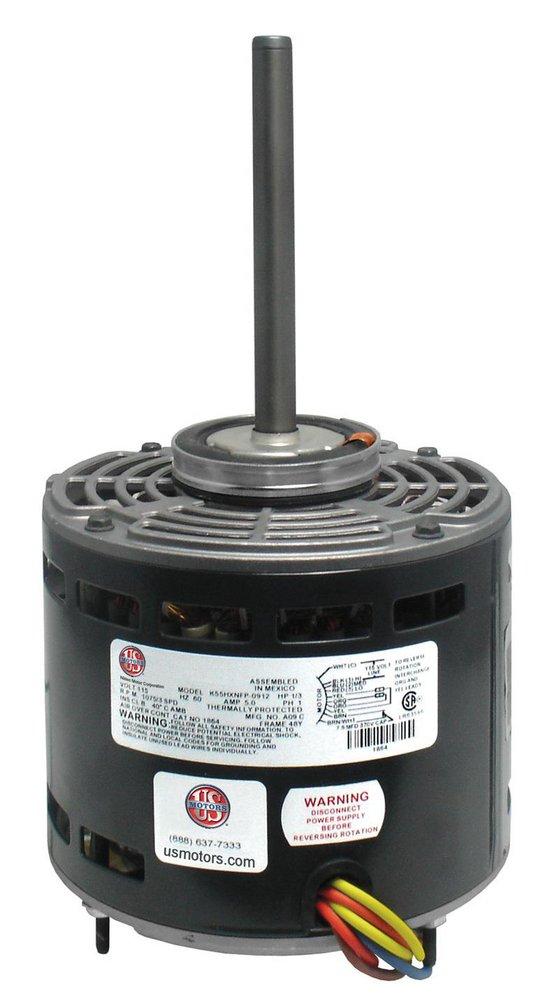

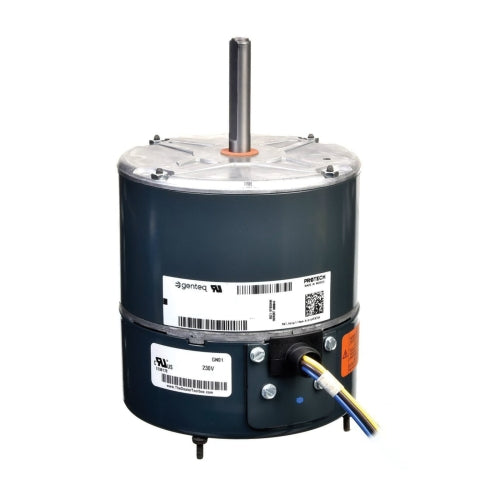

Rheem 51-105035-05 1/2 HP 208/230V Fan Motor

Product Description

The Rheem 51-105035-05 Fan Motor is built to provide efficient performance in demanding applications. This 1/2 HP, 208/230V motor is suitable for various industrial uses including powering pumps, fans, and blowers. Designed with an electronically commutated motor (ECM), this fan motor offers improved energy efficiency and reduced operational costs.

• Variable speed operation
• High-quality construction
• Compact and versatile design

Product Highlights

This motor is suitable for applications where space is limited or custom integrations are needed. It is ideal for use in outdoor settings and is compatible with various air conditioning units.

Product Information

Standard Information

• Brand: Rheem
• Model: 51-105035-05

Technical Specifications

• Voltage Rating: 208 to 230V
• Horsepower: 1/2 HP
• Phase: 1-Phase
• Shaft Diameter: 1/2 inch
• Shaft Length: 1-1/4 inch
• Overall Length: 17.2 inches
• Amperage Rating: 5.3A
• Frequency Rating: 50/60 Hz
• Rotation: CCW
• Bearing Type: Ball
• Mounting: Through Bolt
• Frame: 39
• For Use With: RA1748AJ2CB, RA1760AJ2CB, RA2048AJVCB, RA2060AJVCB, RP2036AJVCA, RP2048AJVCA, RP2060AJVCA Air Conditioner
