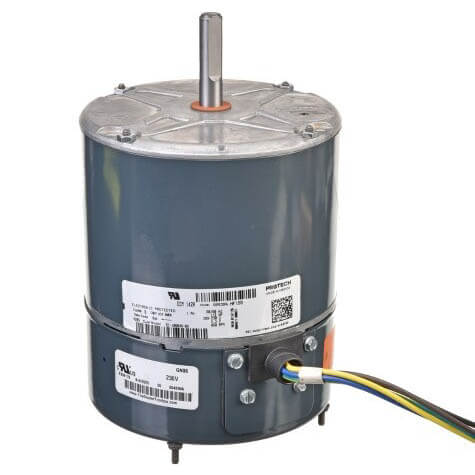

Rheem 51-105035-03 ECM 142R Variable Speed Direct Drive Outdoor Condenser Motor, 1/2 HP

Product Description

The Rheem 51-105035-03 is an ECM 142R variable speed direct drive outdoor condenser motor. This motor operates at one-half horsepower and is designed for use in a variety of HVAC applications. It supports a voltage of two hundred eight to two hundred thirty volts and features a frame size of thirty-nine.

• Direct drive design enhances efficiency and reliability.
• Variable speed function improves system performance.
• Ball bearing construction allows for smooth operation and extended lifespan.

Product Highlights

This outdoor condenser motor is suitable for a range of HVAC units, ensuring optimal airflow and cooling performance. The through-bolt mounting design offers easy installation and stability within the system.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: 054790

Technical Specifications

• Power: 1/2 HP
• Voltage: 208/230 V
• Frame Size: 39
• Full Load Amps: 5.30 FLA
• Rotation: Counterclockwise (CCW)
• Mounting: Thru-bolt
• Weight: 16.5 lbs
• Shipping Dimensions: 16.7 x 8.3 x 8.3 inches
