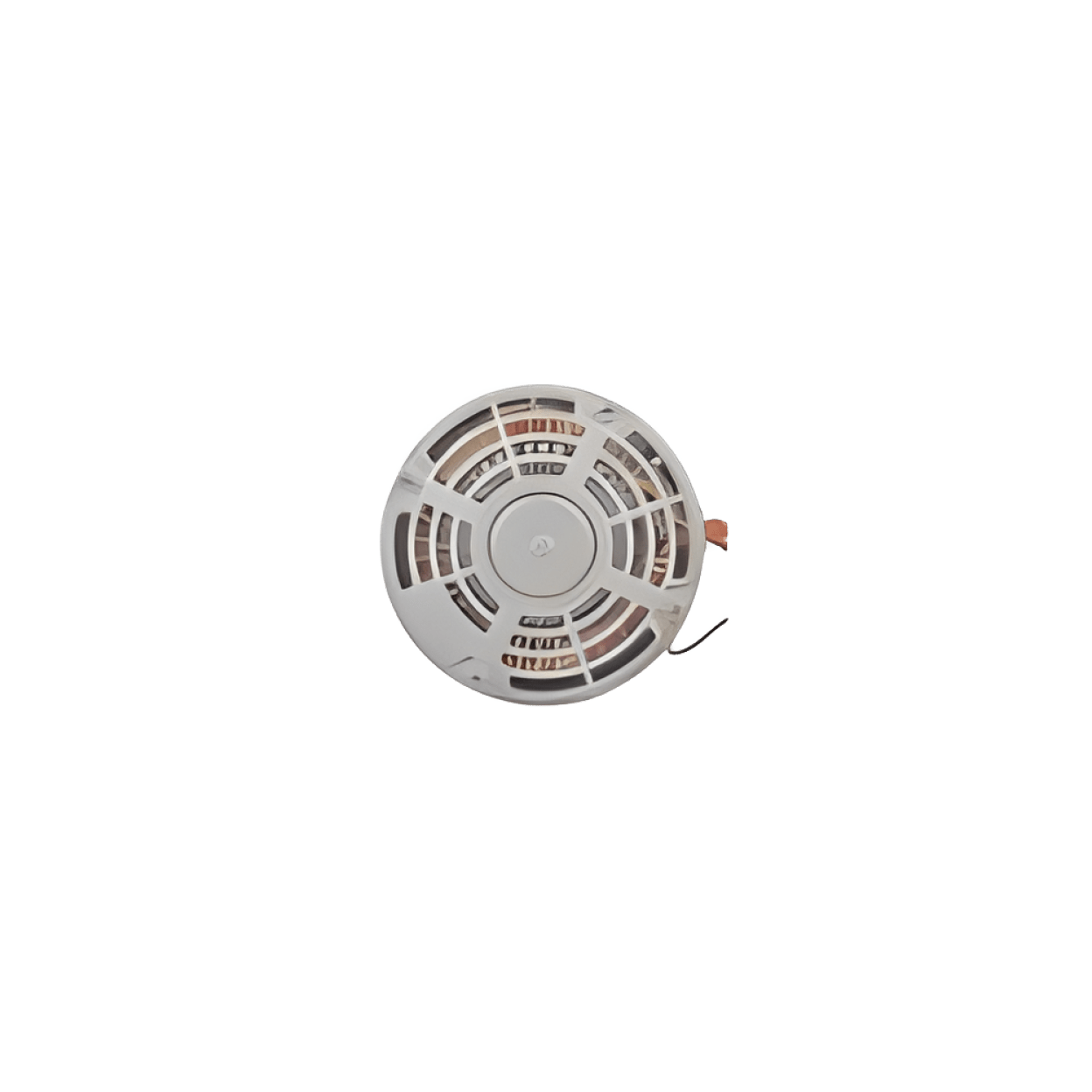

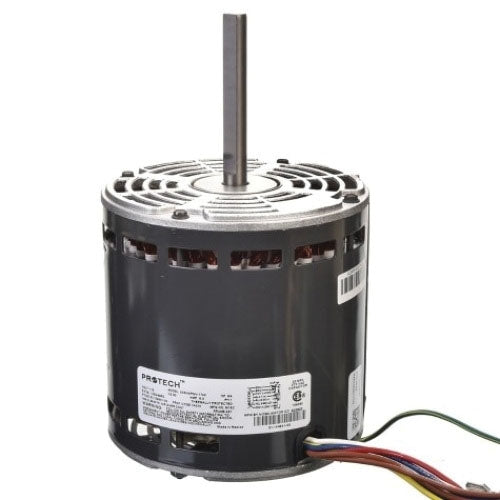

Rheem 51-104941-02 Rheem 3/4 HP 120V 9.3A 1075 RPM SPH Blower Motor

Product Description

The Rheem 51-104941-02 is a 3/4 horsepower blower motor designed for reliable operation in heating, ventilation, and air conditioning systems. This motor operates at 120 volts and features a rotational speed of 1075 RPM, offering effective airflow management for both residential and commercial applications.

• Operates at 120V with a power rating of 3/4 HP.
• Reaches a speed of 1075 RPM, providing consistent airflow.
• Designed for use in HVAC systems, ensuring optimal efficiency.

Product Highlights

This blower motor is suitable for various applications requiring efficient airflow and reliable performance.

Product Information

Standard Information

• Product Type: Blower Motor
• Minimum Order Quantity: 1

Technical Specifications

• Horse Power: 3/4 HP
• Voltage Rating: 120V
• RPM: 1075 RPM
• Phase: 1
• No Load RPM: 1075 RPM
• Shaft Diameter: 1/2 inch
• Shaft Length: 3-1/2 inch
• Capacitor: 20 uf/370V
• Motor Body Diameter: 5-5/8 inch
• Frame: 48
• Drive Type: Direct Drive
• Bearing Type: Ball
• Number of Speed: 4
• Rotation: CCW
