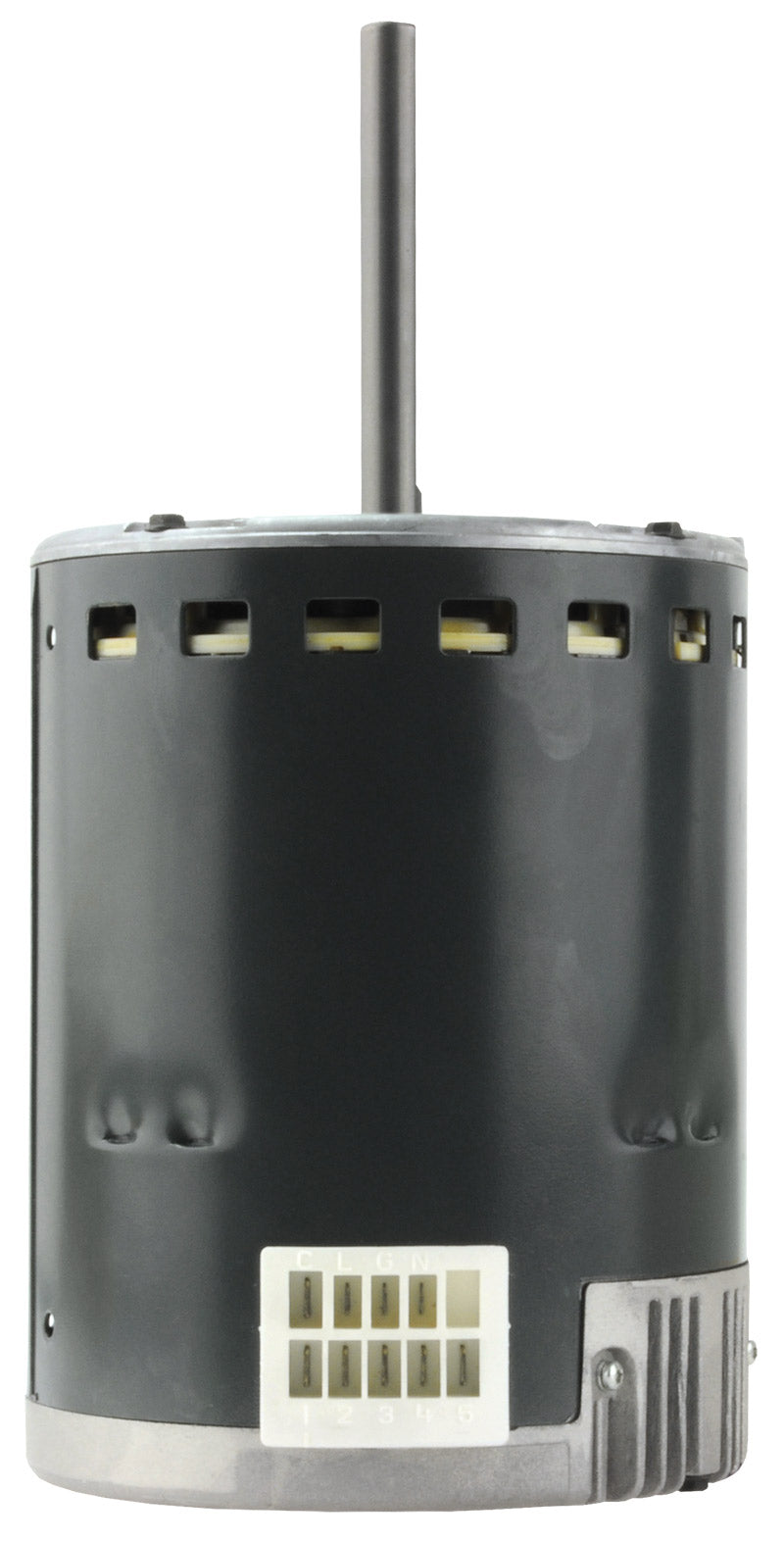

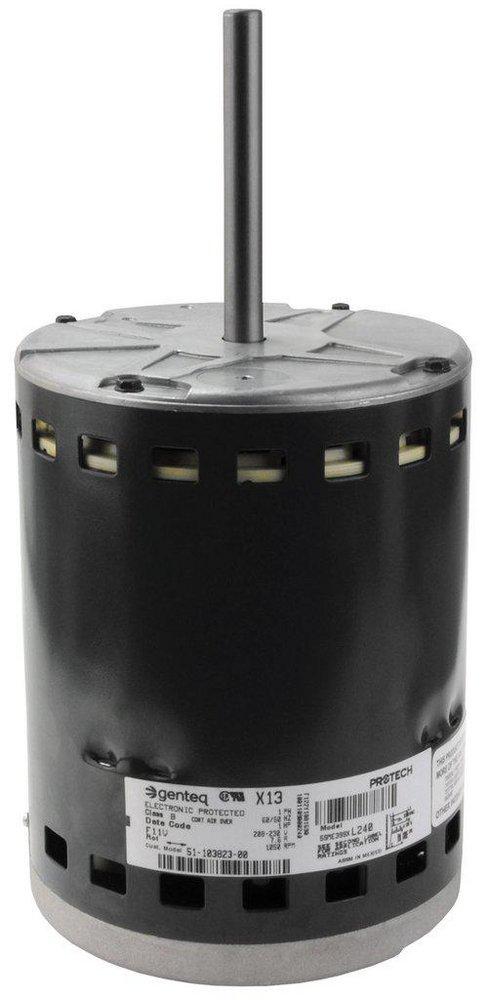

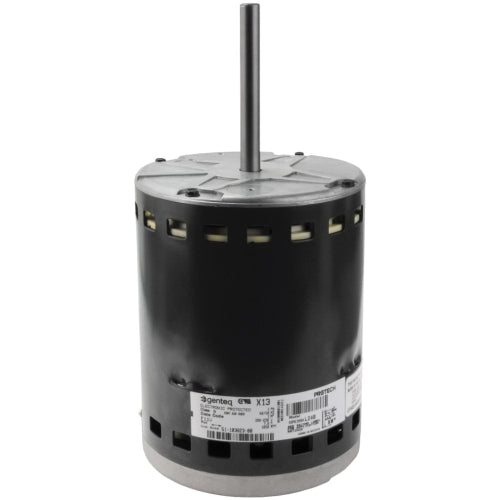

Rheem 51-103823-01 Endura Pro 1 HP 208/230V Single Phase ECM Constant Torque Blower Motor

Product Description

The Rheem 51-103823-01 is a variable speed blower motor designed for HVAC systems. This model operates at one horsepower and is suitable for 208 to 230 voltage applications. It is built to provide constant torque with efficient energy consumption, making it ideal for various HVAC setups.

• Power Rating: 1 HP
• Voltage: 208-230V
• Designed for extended life in tough environments

Product Highlights

This blower motor offers flexibility with up to five constant torque settings. It is controlled by 24V AC inputs, allowing for adjustment to specific system needs. With an improved design for reliability, it outperforms traditional PSC motors, providing better efficiency and lifespan.

Product Information

Standard Information

• Brand: Rheem
• MPN: 51-103823-01

Technical Specifications

• Item Number: 51-103823-01
• Voltage Rating: 208 to 230V
• Horse Power: 1 HP
• Phase: 1
• Shaft Diameter: 1/2 inch
• Shaft Length: 3-15/16 inch
• Frame: 48
• Motor Body Diameter: 5-5/8 inch
• Bearing Type: Ball
• Drive Type: Direct
• Overall Length: 16-3/4 inch
• Frequency Rating: 50/60 Hz
