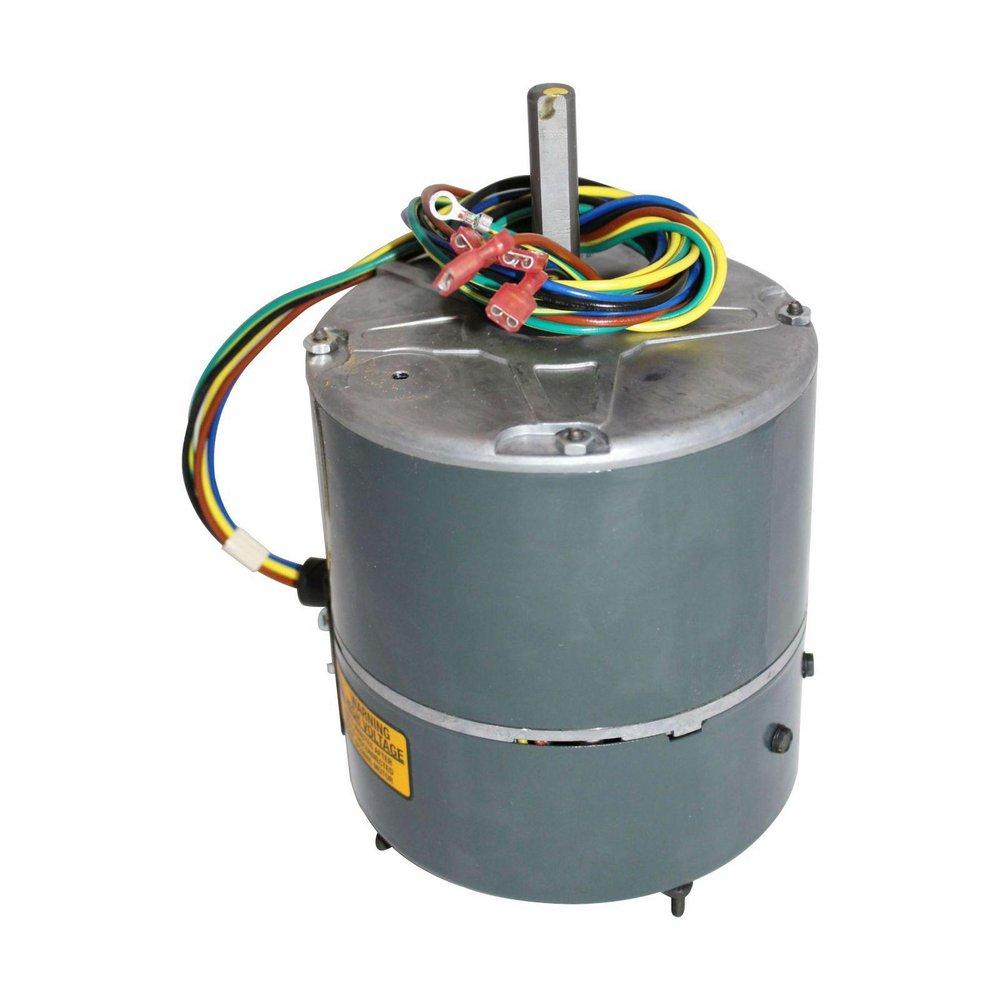

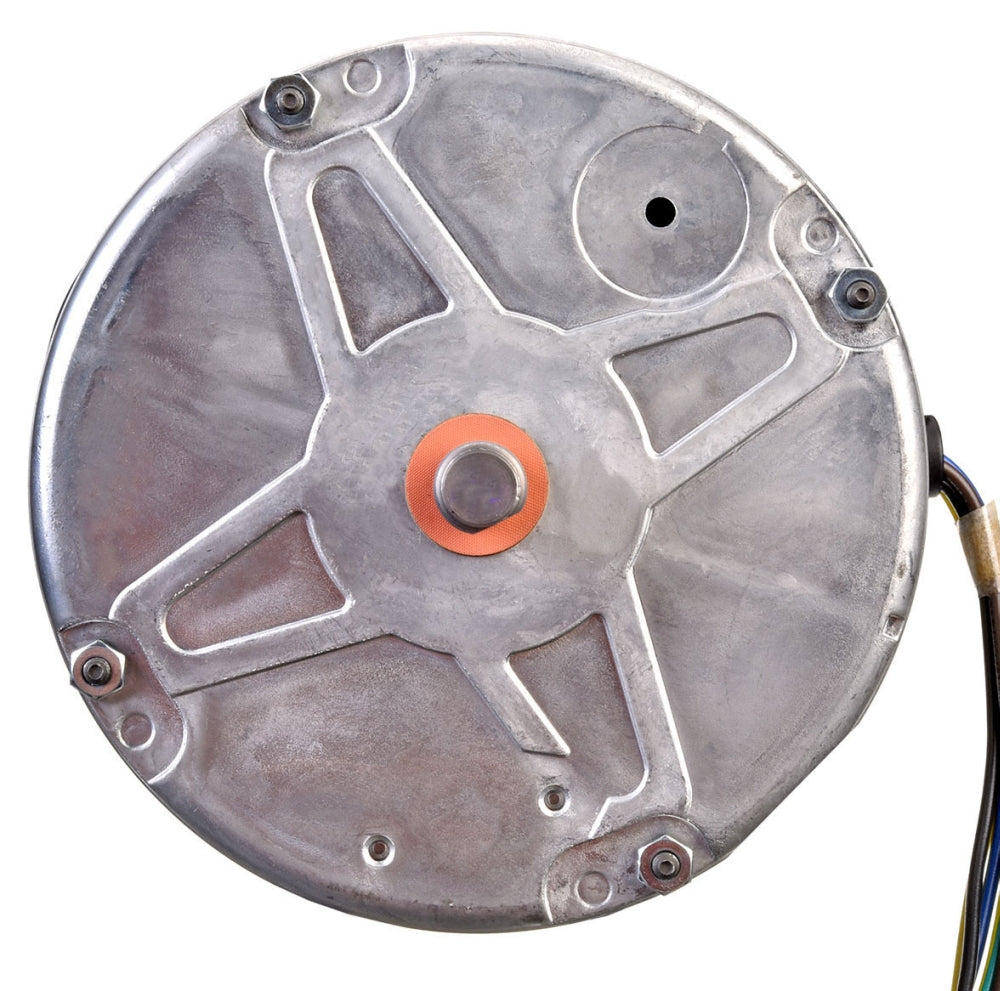

Rheem 51-102728-24 Ruud 2/2/1ph 1/3hp Emc 39fr Ccwose Vs Cond Fan Motor

Product Description

The Rheem 51-102728-24 condenser fan motor has a power rating of 1/3 HP and a voltage rating of 208/230 Volt AC 1-Phase. Operating at 50/60 Hertz, this motor has a FLA of 2.8 Amp at 230 Volt and a variable speed rating of 870 RPM. Designed with a NEMA Frame Size 39 and insulation Class B, it is suitable for outdoor condenser applications.

• Power Rating 1/3 HP
• Voltage Rating 208/230 Volt AC 1-Phase
• Rotation Type Counter Clockwise

Product Highlights

This Rheem condenser fan motor is UL approved for Canada and US, features electronic protection, and is designed for direct drive systems.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 51-102728-24
• Country of Origin: United States

Technical Specifications

• Application: Outdoor, Condenser
• Approval: UL (Canada and US)
• Brand: Rheem
• Manufacturer Part Number: 51-102728-24
• Power Rating: 1/3 HP
• Voltage Rating: 208/230 Volt AC 1-Phase
• Frequency Rating: 50/60 Hertz
• Motor FLA: 2.8 Amp at 230 Volt
• Number Of Speeds: Variable
• Speed Rating: 870 RPM
• NEMA Frame Size: 39
• Insulation Class: B
• Mounting: Thru-Bolt, Shell-Band
• Motor Type: ECM (Not Programmable)
• Drive Type: Direct
• Bearing Type: Ball
• Motor Dimension: 5-5/8 Inch Diameter x 6 Inch Length
• Motor Overall Length: 9-1/16 Inch
• Shaft Size: 1/2 Inch Diameter x 2-5/8 Inch Length
• Rotation Type: Counter Clockwise
• Amperage Rating: 2.8 A
• Phase: 1 ph
• Shaft Diameter: 0.5 in
• Shaft Length: 2.625 in
