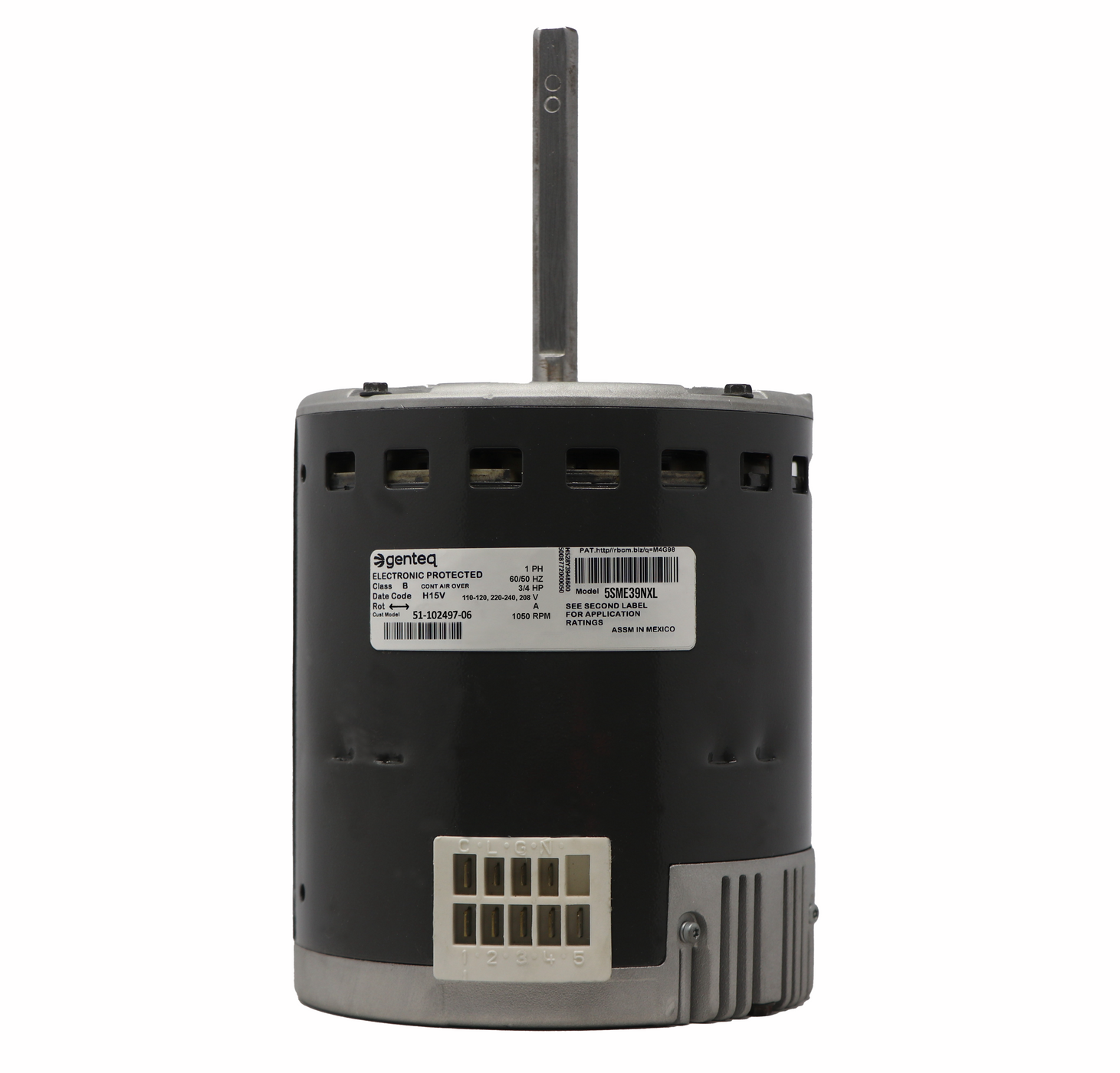

Rheem 51-102497-06 Blower Motor Ecm X13 3/4 Hp

Product Description

The Rheem 51-102497-06 is an ECM X13 blower motor rated at 3/4 HP. It is designed for use in residential and light commercial HVAC systems. HVAC technicians use this motor to replace failed or worn blower motors in Rheem furnaces and air handlers. The ECM X13 design stands for Electronically Commutated Motor with a 13-step constant torque control. This technology makes it far more energy efficient than a standard PSC motor. The motor adjusts its torque output based on system static pressure. This keeps airflow consistent across a wide range of duct conditions. A constant torque motor like this one helps reduce energy consumption and lowers operating costs for the end user. The 3/4 HP rating makes it suitable for medium to larger capacity residential air handlers and furnaces. ECM X13 motors are direct replacements in many Rheem, Ruud, and related brand systems. Technicians should verify the control module, wire harness connector, and mounting configuration before installation. The motor receives a variable voltage control signal from the furnace control board. This signal tells the motor which of the 13 preset torque speeds to run at. This design eliminates the need for a separate motor controller in many applications. The result is quieter, smoother blower operation compared to older multi-tap PSC motors. This part is a factory-authorized replacement motor. Using OEM parts ensures the system performs to its original rated specifications. It supports proper heating and cooling airflow delivery throughout the conditioned space. Always disconnect power before servicing or replacing blower motors.

• ECM X13 constant torque technology for energy-efficient, consistent airflow delivery
• 3/4 HP output rating suitable for medium to large residential HVAC systems
• Factory-authorized OEM replacement for compatible Rheem and Ruud furnaces and air handlers

Product Highlights

The Rheem 51-102497-06 ECM X13 blower motor delivers reliable, energy-efficient airflow in residential HVAC systems. Its constant torque design ensures consistent performance across varying duct static pressures.

Product Information

Standard Information

• Brand: RHEEM
• Manufacturer Part Number: 51-102497-06

Technical Specifications

• Motor Type: ECM X13 Constant Torque
• Horsepower: 3/4 HP
• Application: Residential and Light Commercial HVAC Blower
• Compatible Systems: Rheem and Ruud Furnaces and Air Handlers
• Part Category: OEM Replacement Blower Motor
