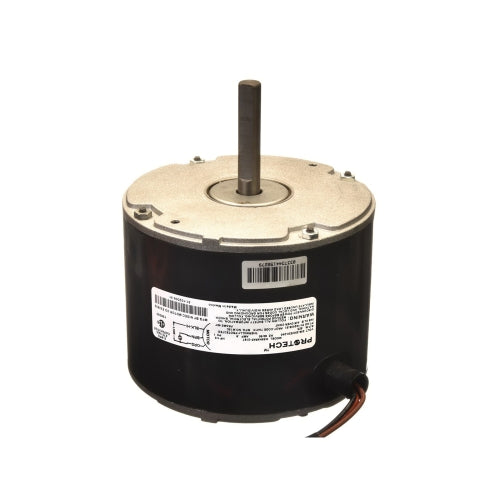

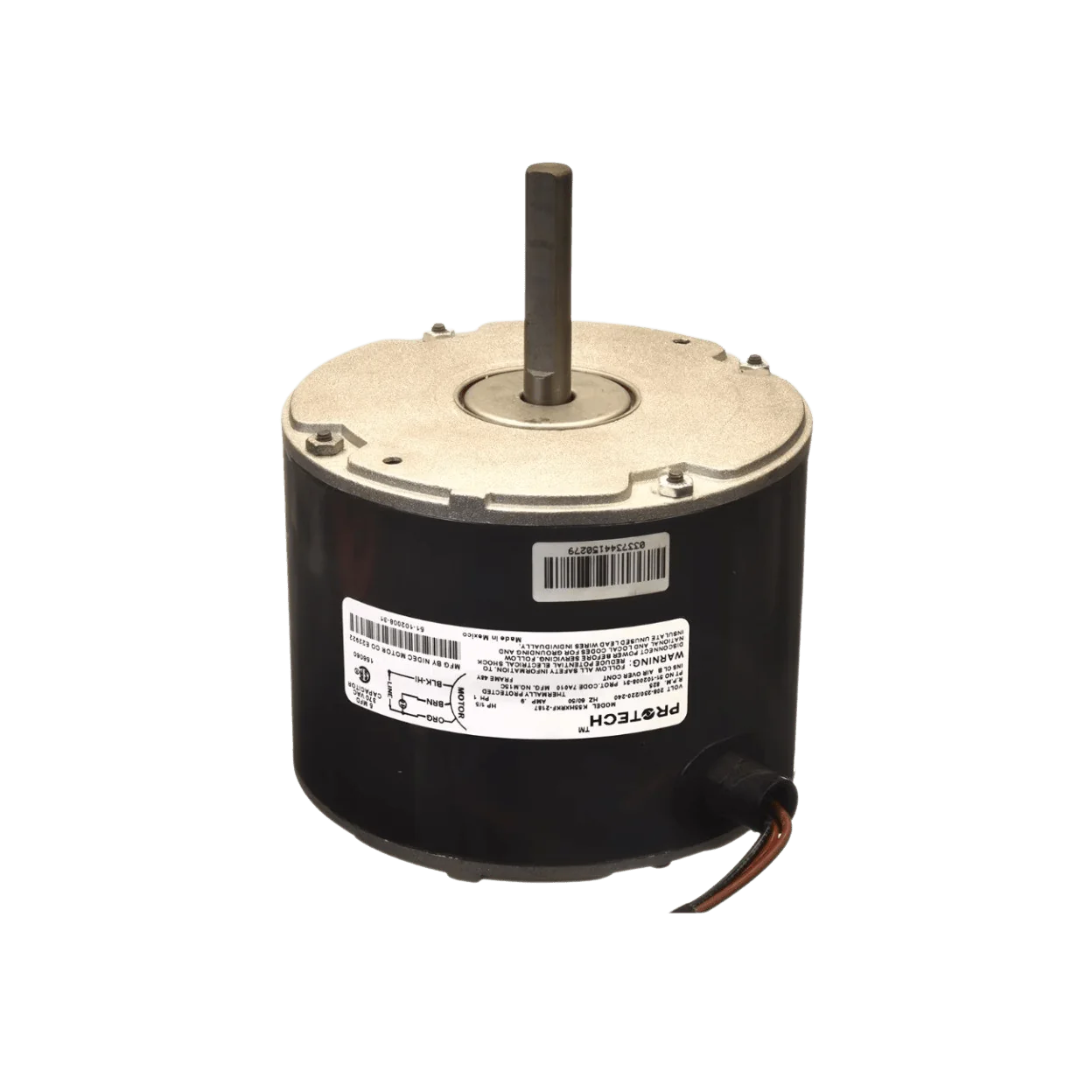

Rheem 51-102008-31 1/5 HP 208/230VAC 825 rpm 1-Phase 1 Speed Condenser Fan Motor

Product Description

The Rheem 51-102008-31 is a condenser fan motor designed for heating and cooling applications. This unit operates at 1/5 horsepower with a voltage rating of 208 to 230 volts. The motor runs at eight hundred twenty-five RPM and is intended for one-phase systems.

• Provides reliable operation for RP17 series heat pumps.
• Constructed for efficiency and longevity.
• Comes with mounting provisions for easy installation.

Product Highlights

This motor is engineered as a direct replacement for various HVAC applications, ensuring optimal cooling performance and reliability.

Product Information

Standard Information

• Brand: Rheem Parts
• MPN: 51-102008-31

Technical Specifications

• Horse Power: 1/5 HP
• Voltage Rating: 208 to 230V
• RPM: 825 rpm
• Phase: 1-Phase
• Mounting: Shell Band/End Boss
• Shaft Diameter: 1/2 inch
• Shaft Length: 2-1/2 inch
• Capacitor: 5 uF
• Frame: 48
• Bearing Type: Ball
• Amperage Rating: 0.9A Full Load
• Overall Length: 14-1/2 inch
• Rotation: CCW
• Frequency Rating: 50/60 Hz
