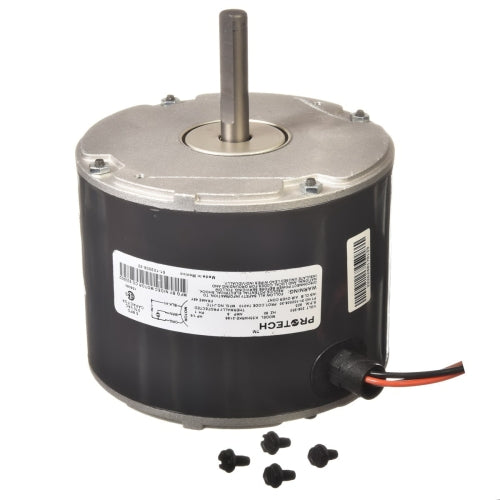

Rheem 51-102008-30 1/6 HP 208/230VAC 825 RPM 1-Phase 1 Speed Condenser Fan Motor

Product Description

The Rheem 1/6 HP 208/230VAC 825 RPM 1-Phase 1 Speed Condenser Fan Motor, MPN 51-102008-30, is designed for efficient operation in HVAC applications. This condenser fan motor supports RP17 Series heat pumps and is essential for maintaining optimal performance in cooling systems.

• Rated for one phase operation at 208 to 230 volts.
• Operating speed of 825 RPM with a single speed design.
• Features a shaft diameter of half an inch and a length of two and one-fourth inches.

Product Highlights

This motor is built for durability and reliability in various HVAC setups. Its design allows for easy installation and operation, making it a preferred choice among HVAC professionals.

Product Information

Standard Information

• Brand: Rheem Parts
• Part Number: 51-102008-30

Technical Specifications

• Horse Power: 1/6 HP
• Voltage Rating: 208 to 230V
• RPM: 825 rpm
• Phase: 1-Phase
• Type: Condenser Fan Motor
• For Use With: RP17 Series Heat Pumps
• Shaft Diameter: 1/2 inch
• Shaft Length: 2-1/4 inch
• Capacitor: 5 uF
• Frame: 48
• Bearing Type: Ball
• Amperage Rating: 0.8A Full Load
• Overall Length: 13.2 inch
• Frequency Rating: 60 Hz
• Rotation: CCW
