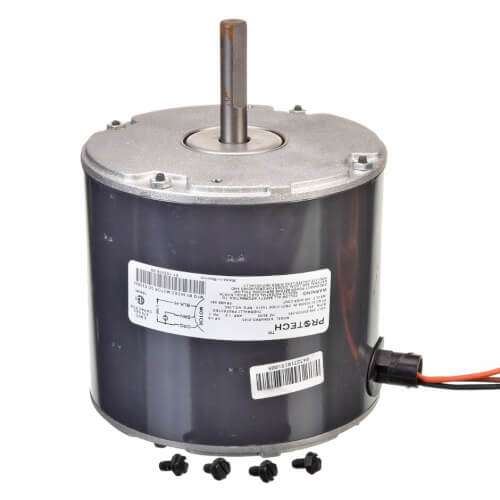

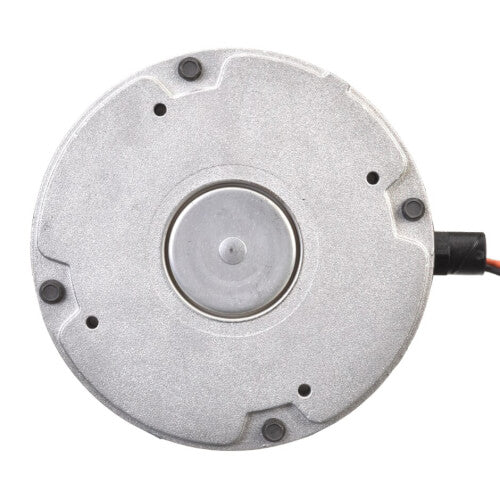

Rheem 51-102008-29 Rheem 1/5 HP 208/230VAC 825 RPM 1-Phase 1 Speed Condenser Fan Motor

Product Description

The Rheem 1/5 HP 208/230VAC 825 RPM 1-Phase 1 Speed Condenser Fan Motor, model 51-102008-29, provides reliable performance for cooling systems. This motor is designed specifically for RP17 Series Heat Pumps, ensuring compatibility and efficiency in HVAC applications. Its robust construction and effective cooling capabilities make it suitable for a variety of residential and commercial settings.

• Horsepower: 1/5 HP
• Voltage Rating: 208 to 230V
• Speed: 825 RPM

Product Highlights

This condenser fan motor is a key component for maintaining optimal performance in air conditioning systems. It operates at a speed of 825 RPM and is designed for single-phase power supply, making it ideal for residential setups.

Product Information

Standard Information

• Brand: Rheem Parts
• MPN: 51-102008-29

Technical Specifications

• Type: Condenser Fan Motor
• Horse Power: 1/5 HP
• Phase: 1-Phase
• Voltage Rating: 208 to 230V
• RPM: 825 rpm
• Shaft Diameter: 1/2 inch
• Shaft Length: 2-3/16 inch
• Overall Length: 13.2 inch
• Frequency Rating: 50/60 Hz
• Rotation: CCW
• Amperage Rating: 1A Full Load
• Mounting: Shell Band/End Boss
• Capacitor: 5 uF
• Bearing Type: Ball
• No Load RPM: 825 rpm
• Frame: 48
• Number of Speed: 1
