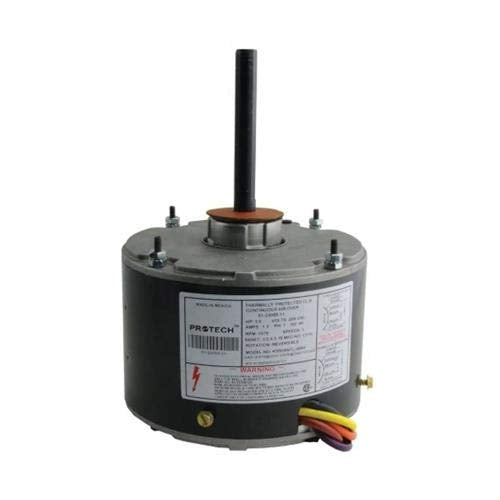

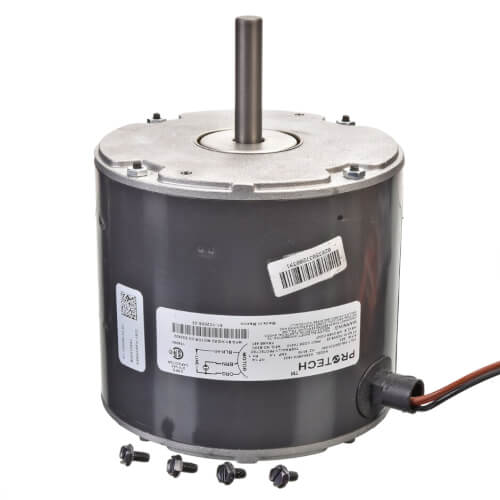

Rheem 51-102008-23 1/4 HP 208/230VAC 825 rpm 1-Phase 1 Speed Condenser Fan Motor

Product Description

The Rheem 1/4 HP 208/230VAC 825 rpm 1-Phase 1 Speed Condenser Fan Motor, MPN 51-102008-23, is designed for efficient performance in HVAC systems. This motor is ideal for use with RP16 Series heat pumps, ensuring reliable operation in various environments.

• Voltage rating: 208 to 230 volts.
• Designed for direct drive applications.
• Capable of operating at 825 revolutions per minute.

Product Highlights

This condenser fan motor features a robust design, making it suitable for long-term use in HVAC systems. It operates on a single phase and is equipped with a standard mounting type for easy installation.

Product Information

Standard Information

• Brand: Rheem Parts
• Part Number: RH5110200823

Technical Specifications

• Voltage Rating: 208 to 230V
• Horse Power: 1/4 HP
• RPM: 825 rpm
• Type: Condenser Fan Motor
• For Use With: RP16 Series Heat Pumps
• Phase: 1-Phase
• Shaft Diameter: 1/2 inch
• Shaft Length: 2-1/4 inch
• Overall Length: 8.3 inch
• Mounting: Shell Band
• Amperage Rating: 1.4A Full Load
• Frequency Rating: 50/60 Hz
• Rotation: CCW
• Frame: 48
• Bearing Type: Ball
• Number of Speed: 1
