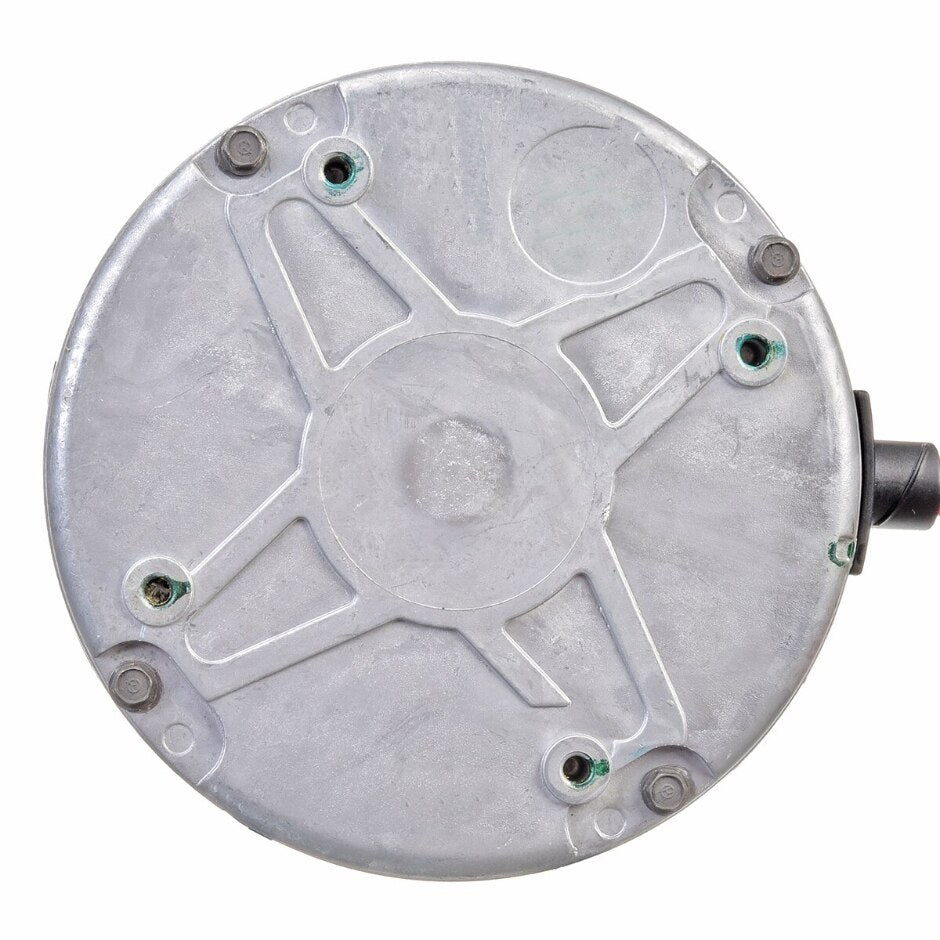

Rheem 51-101774-34 Condenser Motor 1/5 HP 460V

Product Description

The Rheem 51-101774-34 condenser motor is essential for moving heat away from HVAC systems. This motor is designed to be a direct replacement for existing HVAC motors used in ventilators, fans, and blowers, ensuring easy installation and reliable operation.

• Condenser motor for HVAC heat transfer applications.
• Operates at 460 volts, one phase, sixty hertz, and eight hundred twenty-five RPM.
• Compatible with various ventilators, fans, and blowers.

Product Highlights

The Rheem condenser motor efficiently assists in heat exchange, making it ideal for HVAC professionals. Its specifications align perfectly with industry standards for performance.

Product Information

Standard Information

• Brand: Rheem
• MPN: 51-101774-34

Technical Specifications

• Product Type: Condenser Motor
• Horsepower: 1/5 HP
• Input Voltage: 460 V
• Frequency: 60 Hz
• Number Of Phases: 1
• RPM: 825 r/min
• Number Of Speeds: 1
• Rotation Direction: OSE, CCW
• FLA at 460V: 0.50 A
• LRA at 460V: 1.40 A
• Shaft Diameter: 1/2 in
• Shaft Length: 2 in
• Keyed/Flat Shaft Length: 1 1/2 in
• Overall Length: 7 11/32 in
• Total Length: 7 11/32 in
• Motor Body Diameter: 5 5/8 in
• Motor Body Length: 5 3/16 in
• Bearing Type: Ball
• Mounting Method: End-boss | Shell-band
• Frame Size: 48
• Drive Type: Direct Drive
