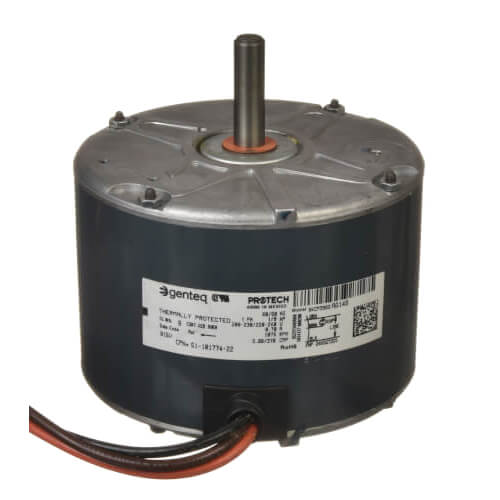

Rheem 51-101774-22 1/8 HP 208-230v 1075 RPM 1-Phase Motor

Product Description

The Rheem 51-101774-22 1/8 HP motor provides efficiency and power for various industrial applications. This motor operates at 1075 RPM with a 208-230v power supply and is designed for reliability and longevity in demanding environments.

• 1/8 HP power for efficient operation
• 1075 RPM speed for consistent performance
• 208-230v power supply for versatility

Product Highlights

This Rheem motor is engineered for robust performance with a 1/8 HP and 1075 RPM, making it suitable for a wide range of uses. It is designed for seamless integration into industrial equipment, ensuring cost-effective and reliable functionality.

Product Information

Standard Information

• Brand: Rheem-Ruud
• Item Number: 51-101774-22

Technical Specifications

• Horse Power: 1/8 HP
• RPM: 1075
• Voltage Rating: 208 to 230V
• Phase: 1-Phase
• Bearing Type: Sleeve
• Shaft Diameter: 1/2 inch
• Shaft Length: 1-3/4 inch
• Enclosure Type: Totally Enclosed
• Frame: 48
• Mounting: Shell Band/End Boss
• Amperage Rating: 0.7A Full Load at 230V
• Frequency Rating: 50/60 Hz
• Motor Body Diameter: 5-5/8 inch
• Overall Length: 13 inch
• Rotation: CCW
• Capacitor: 5/370 uF/V
• For Use With: RA13 Condensing Unit
• Number of Speed: 1
