Product Description

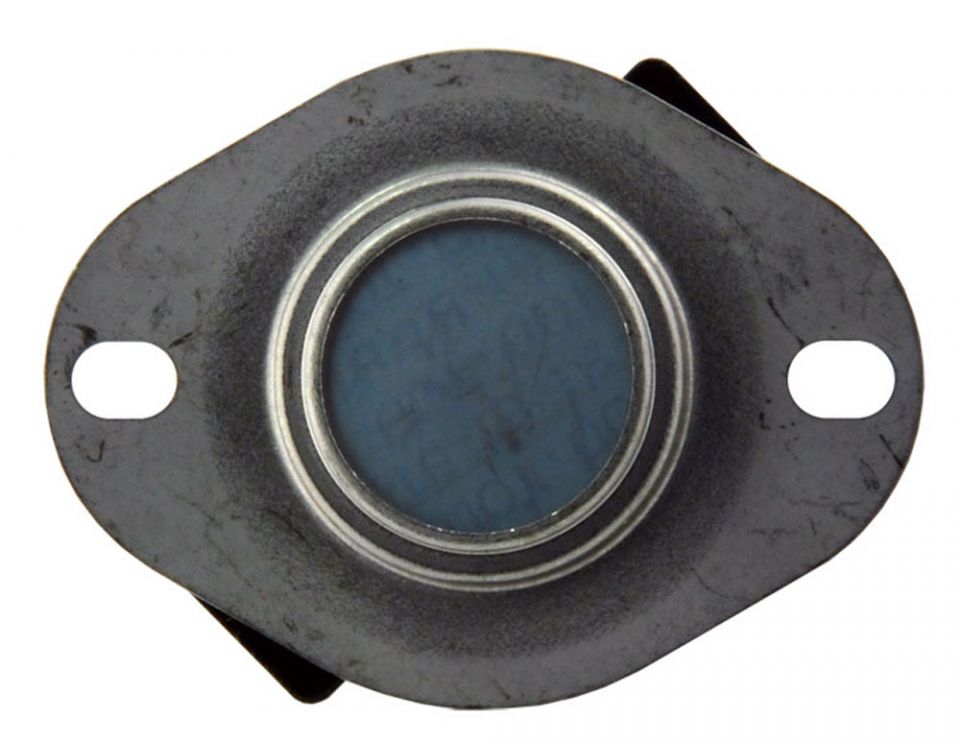

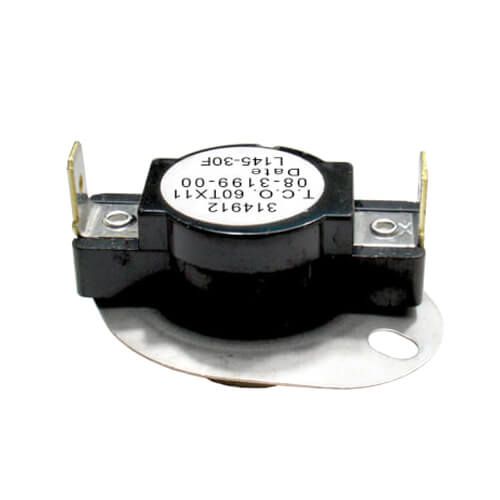

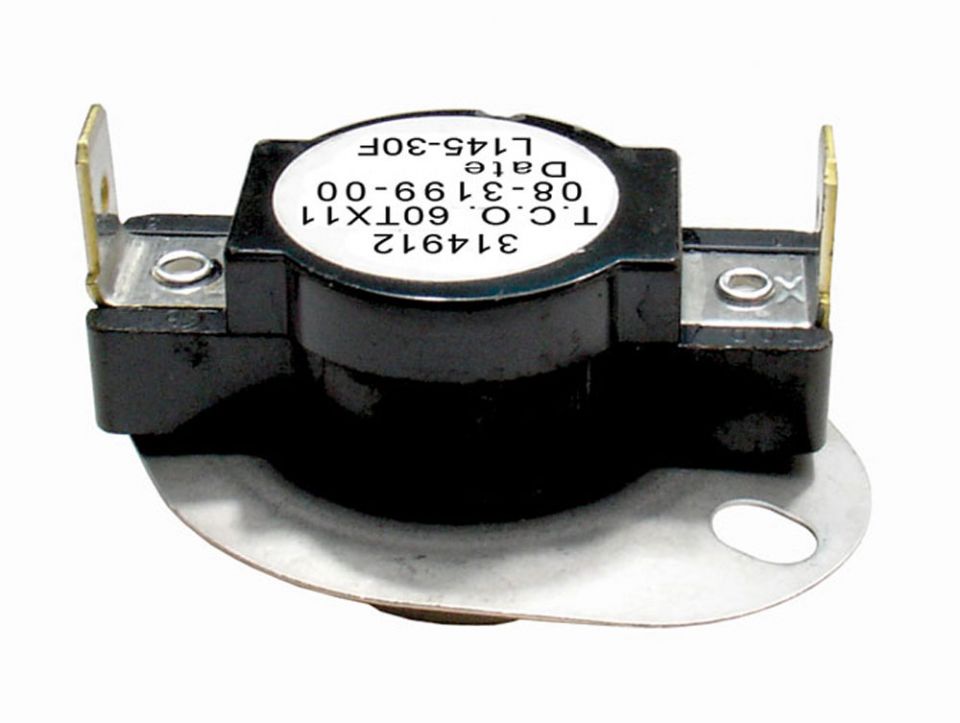

The Rheem 470039 is an automatic reset limit switch designed for HVAC systems. This device is built to maintain optimal temperatures by managing the airstream. It is primarily used in heating applications.
- Auto reset function enhances system efficiency.
- Normally closed contact orientation for reliable operation.
- 1/4 inch quick connect terminals ensure easy installation.
Product Highlights
The Rheem 470039 limit switch is crucial for managing temperature settings in heating applications.
Product Information
Standard Information
Technical Specifications
-
Product Type: Limit Switch
-
Contact Orientation: Normally Closed
-
Close Temperature: 115 degrees Fahrenheit
-
Open Temperature: 145 degrees Fahrenheit
-
Reset Mode: Auto
-
Maximum Voltage Rating: 230 VAC
-
Maximum Current Rating: 25 A
-
Mounting: Flanged airstream
-
Connections: 1/4 inch Quick Connects
-
Number of Poles: 1
-
Switch Type: SPST
-
Tolerance Close Temperature: +/- 6 degrees Fahrenheit
-
Tolerance Open Temperature: +/- 5 degrees Fahrenheit
-
Mounting Insertion Depth - Maximum: 3/8 inches
