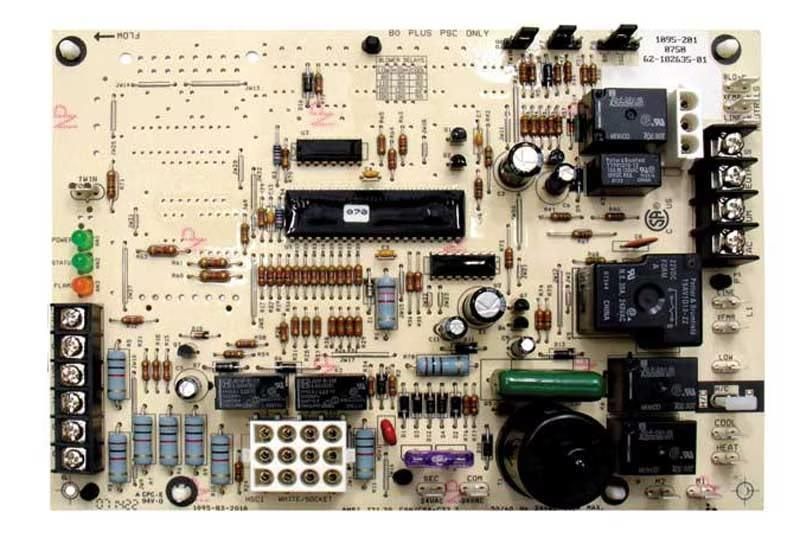

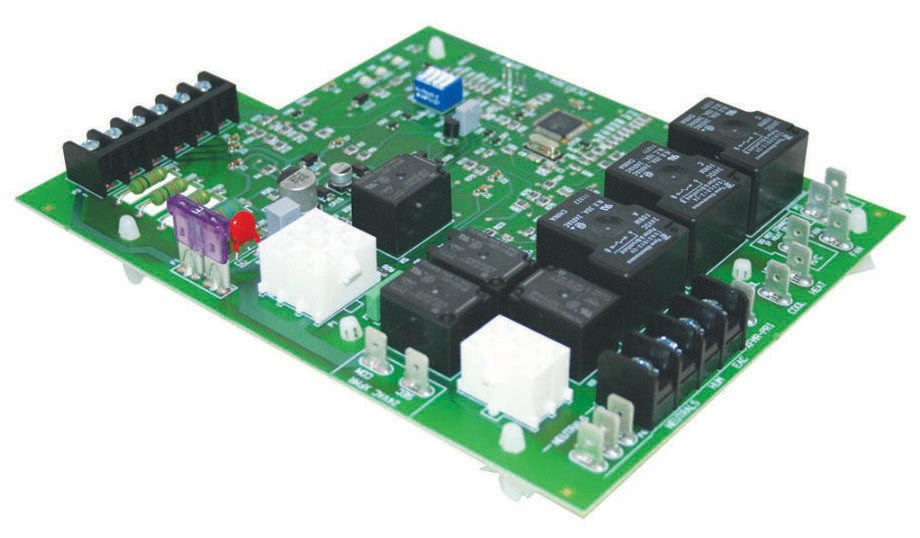

Rheem 47-ICM288 Furnace Control Board 98-132 VAC

Product Description

The Rheem 47-ICM288 furnace control board operates on a voltage range of ninety-eight to one hundred thirty-two VAC. This microprocessor-based module is responsible for monitoring key components like pressure, roll-out, and limit switches. It effectively controls the gas valve, inducer draft motor, circulating blower, and hot surface igniter to ensure reliable furnace operation.

• Monitors pressure, roll-out, and limit switches
• Manages gas valve and inducer draft motor
• Includes diagnostic LEDs for easy troubleshooting

Product Highlights

The control board features reverse polarity detection, enhancing safety during operation. It is designed for furnaces and supports a simplified installation process for HVAC professionals.

Product Information

Standard Information

• Brand: Rheem
• MPN: 47-ICM288

Technical Specifications

• Contact Rating - Gas Valve (A): 1
• Contact Rating - Gas Valve (V): 24
• Contact Rating - Ignitor (A): 5
• Contact Rating - Ignitor (V): 120
• Contact Rating - Inducer (A): 4
• Contact Rating - Inducer (V): 120
• Frequency (Hz): 60
• Type: Furnace Control
• Input Voltage: 98-132 VAC
• Manufacturer Part Number: ICM288
• Part Description: Furnace Control Module
• Ignition Trial Time: 10 Seconds
• Prepurge Time: 60 Seconds
• Application: Furnace
• Approval: UL (Canada and US)
