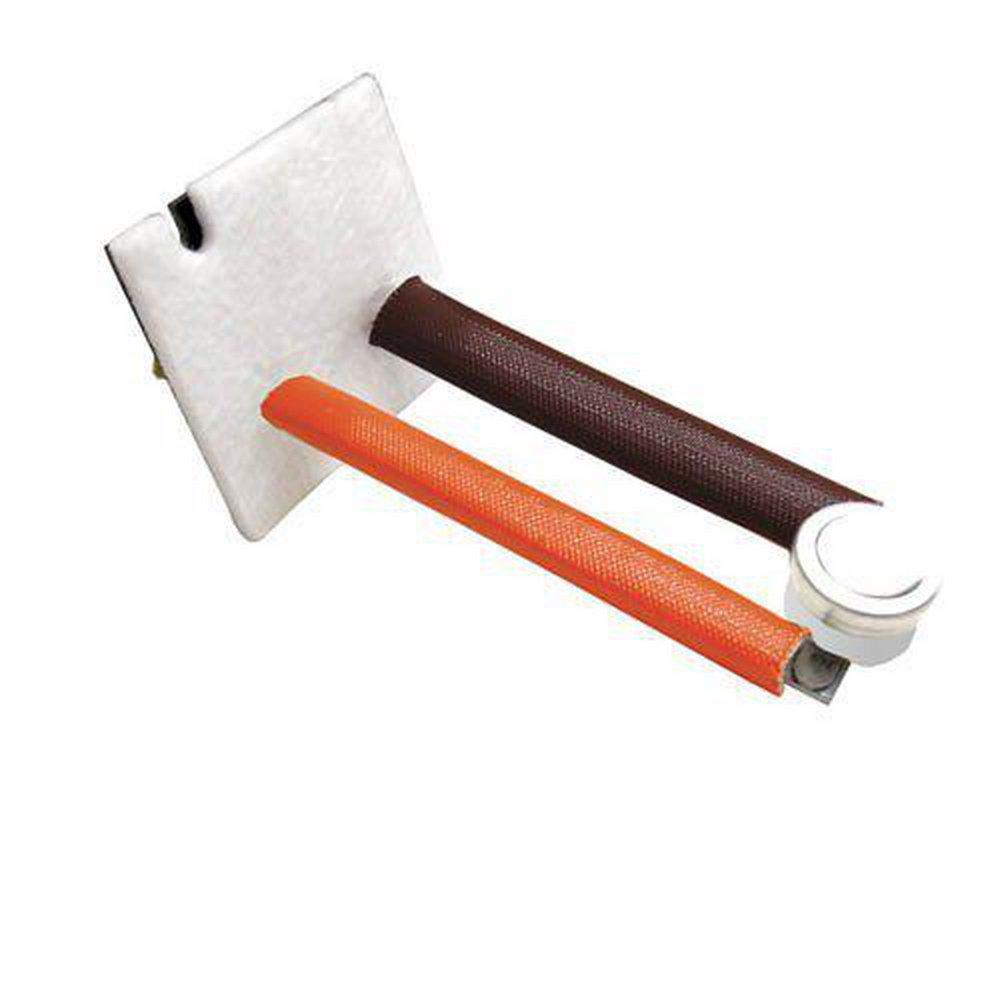

Rheem 47-25349-12 Therm-O-Disc 120/230V 165F Auto Reset Limit Control Switch

Product Description

The Rheem 47-25349-12 is a Therm-O-Disc® 120/230V 165-degree auto reset limit control switch. This switch is designed for HVAC systems requiring reliable temperature control.

• Compatible with various Rheem models.
• Functions within a temperature range of 140 degrees Fahrenheit to 165 degrees Fahrenheit.
• Equipped with SPST switch type for better performance.

Product Highlights

This limit control switch is essential for HVAC applications where temperature regulation is necessary. It automatically resets, ensuring systems operate within safe temperature limits.

Product Information

Standard Information

• Brand: Rheem
• MPN: 47-25349-12

Technical Specifications

• Open Temperature: 165 degrees Fahrenheit
• Close Temperature: 140 degrees Fahrenheit
• Switch Type: SPST
• Tolerance Open Temperature: +/- 5 degrees Fahrenheit
• Tolerance Close Temperature: +/- 7 degrees Fahrenheit
• Maximum Voltage Rating: 120/230 VAC
• No of Poles: 1
• Connections: 1/4 inch Quick Connects
