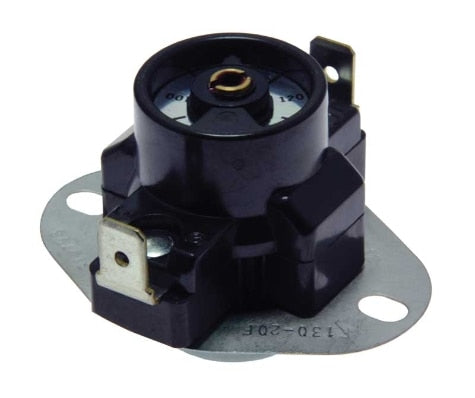

RHEEM 47-25114-01 Adjustable Fan Control

Product Description

The RHEEM 47-25114-01 is an adjustable fan control designed for HVAC systems. This device regulates the fan's operation by adjusting its speed in response to temperature changes, optimizing performance and energy efficiency. It ensures the HVAC system maintains the desired temperature by controlling when the fan turns on and off.

• Adjusts fan speed based on temperature changes.
• Maintains desired temperature levels by controlling the fan.
• Normally open limit switch with auto reset.

Product Highlights

The fan control operates within a temperature range of ninety to one hundred thirty degrees Fahrenheit, with a factory setting of one hundred ten degrees Fahrenheit. The limit switch is designed to close automatically, enhancing the functionality of HVAC systems, and is rated for two hundred thirty volts AC.

Product Information

Standard Information

• Manufacturer: Rheem
• Part Number: 47-25114-01

Technical Specifications

• Category: Adjustable
• Close Temperature (F): 90 - 130 (110 Factory Setting)
• Connections: 1/4 in. Quick Connects
• Contact Orientation: Normally Open
• Maximum Voltage Rating (VAC): 230
• Reset Mode: Auto
• Switch Type: SPST
