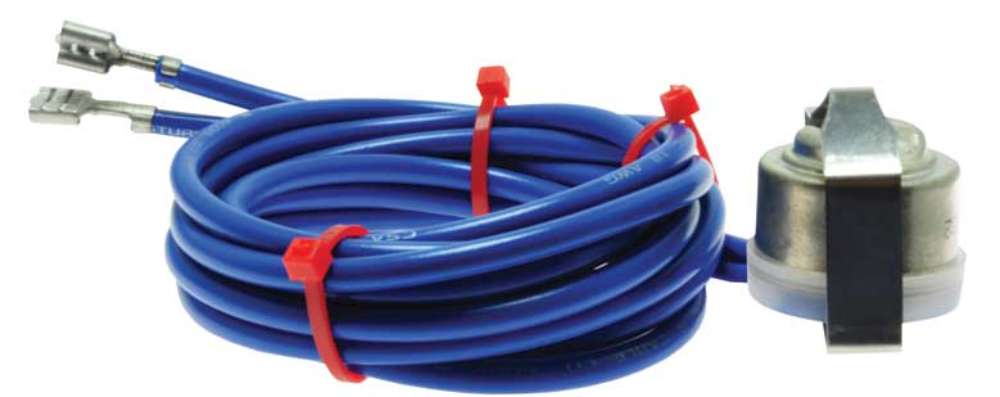

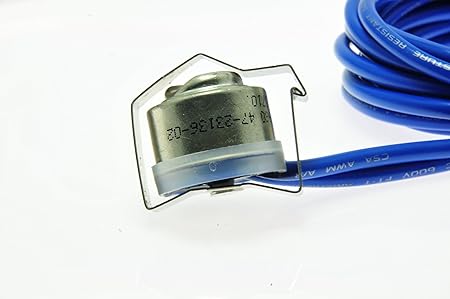

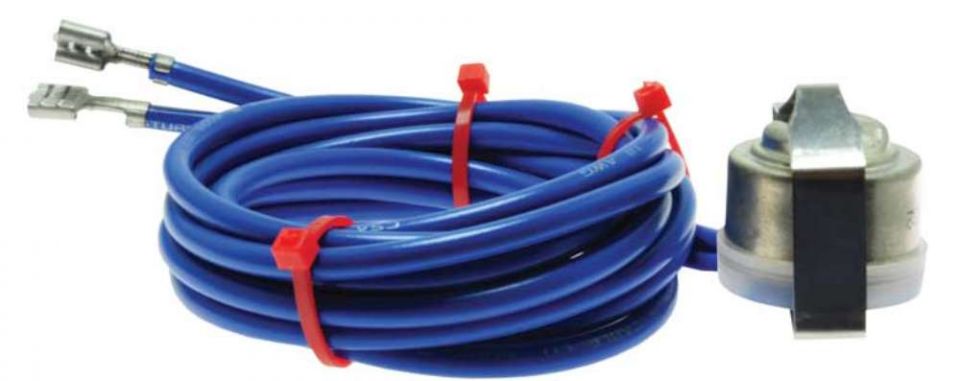

Rheem 47-23136-02 Limit Switch/Defrost Sensor - Auto Reset (Tube Mount)

Product Description

The Rheem 47-23136-02 is an auto-reset limit switch and defrost sensor made for tube mounting. This device is a single pole single throw (SPST) switch that offers moisture resistance and an open-on-rise contact orientation. It is designed specifically for licensed technicians to install easily and comes enclosed for added protection.

• Auto reset functionality ensures reliability.
• Suitable for three-eighths inch tube mounting.
• Equipped with a one-quarter inch quick connect, featuring a wire length of forty-eight inches.

Product Highlights

This limit switch is vital for HVAC systems, providing safety and efficiency through automatic resetting. It is an essential component for maintaining optimal system performance.

Product Information

Standard Information

• Brand: Rheem
• Product Type: Limit Switch

Technical Specifications

• MPN: 47-23136-02
• TOD Switch Series: 37T
• Category: Moisture Resistant
• Reset Mode: Auto
• Number of Poles: 1
• Switch Type: SPST
• Contact Orientation: Open on Rise
• Maximum Voltage Rating (VAC): 120 / 230
• Maximum Current Rating (A): 10 / 5
• Open Temperature (F): 70
• Open Temperature Tolerance (F): +/-5
• Close Temperature (F): 30
• Close Temperature Tolerance (F): +/-5
• Nominal Temperature Difference (F): 40
• Disc Face: Enclosed
• Mounting Type: 3/8 in. Tube
• Connections: 1/4 in. Quick Connects - 48 in. wire length
